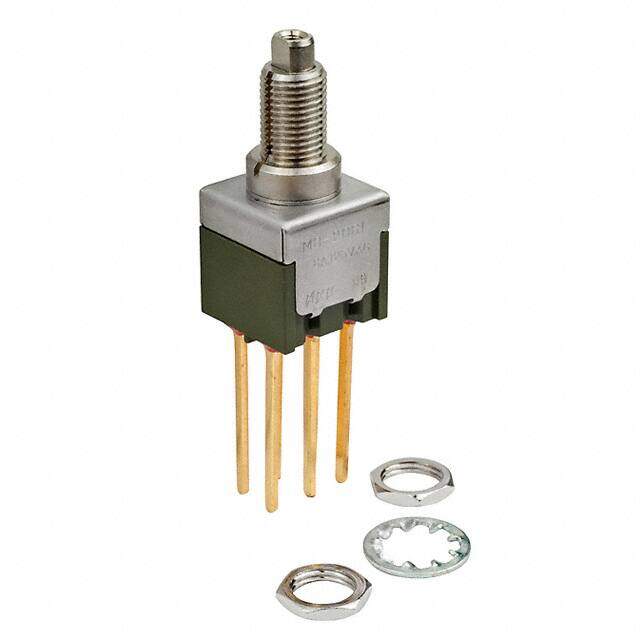

MB2061SS1A06/328
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 6A 125V
PDF
/
Inventory: 2250
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Technical
Mechanical Life 100,000 Cycles
Electrical Life 25,000 Cycles
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Mom
Circuit DPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 125V
Termination Style Wire Wrap
Current Rating 3A
Current Rating (Amps) 6A AC 3A DC
Voltage - Rated DC 30V
Power Rating 400mW
Type Standard
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Low Temperature Lubricant
Series MB2000
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Housing Material Resin
Mounting Type Panel Mount, Rear
Contact Plating Gold
Supply Chain
Factory Lead Time 8 Weeks
