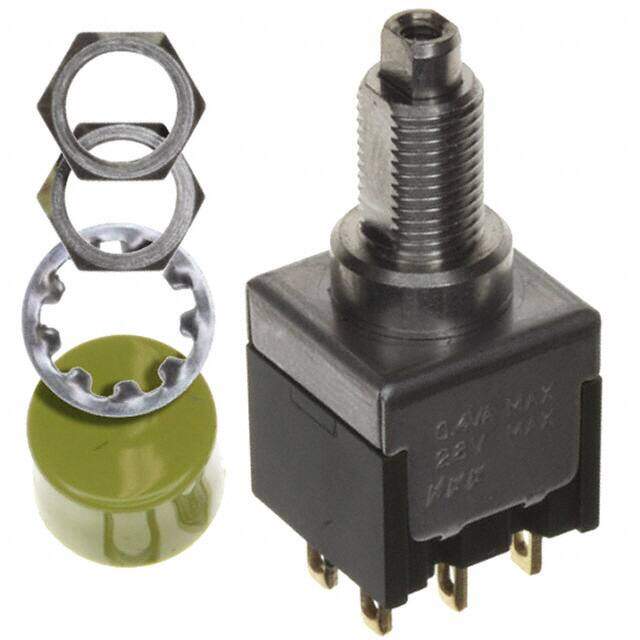

MB2061SD1G01-CE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $10.27
Unit Price: USD $10.2696
≥1 USD $10.2696
Inventory: 83
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Technical
Mechanical Life 100,000 Cycles
Electrical Life 50,000 Cycles
Color - Actuator/Cap Yellow
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Mom
Circuit DPDT
Actuator Type Round, Button
Voltage - Rated AC 28V
Termination Style Solder Lug
Orientation Vertical
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series MB2000
Published 2011
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Housing Material Resin
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Gold
Supply Chain
Factory Lead Time 8 Weeks
