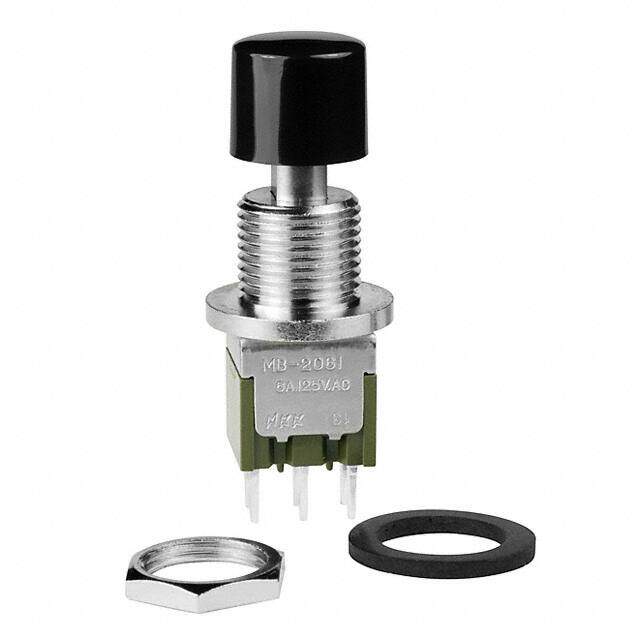

MB2061SB3W03-DA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 6A 125V
PDF
/
Inventory: 9410
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 0.59 inch
Length - Termination 0.25 inch
Body Height 46.3296mm
Technical
Bushing Length 0.472 inch
Solderability WAVE
Actuator Travel 1.8034 mm
Contact Function ON-(ON)
PCB Hole Count 6
Contact Voltage(AC)-Max 250V
Contact (AC) Max Rating R Load 3A@250VAC
Contact Current(AC)-Max 3A
Illumination Type Illuminated
Contact Current Rating 6A
Mechanical Life 50,000 Cycles
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.01mOhm
Panel Cutout Dimensions Circular - 12.50mm Dia
Switch Function On-Mom
Circuit DPDT
Actuator Type Round, Button
Body Breadth 12.7 mm
Body Length or Diameter 13.0048mm
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 3A
Reach Compliance Code not_compliant
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 6A AC 3A DC
Voltage - Rated DC 30V
Additional Feature SPLASH-PROOF BUSHING
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series MB2000
Published 2012
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Terminal Material COPPER ALLOY
Actuator Material POLYSTYRENE
Housing Material Resin
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Silver
Supply Chain
Factory Lead Time 5 Weeks
Alternative Model
