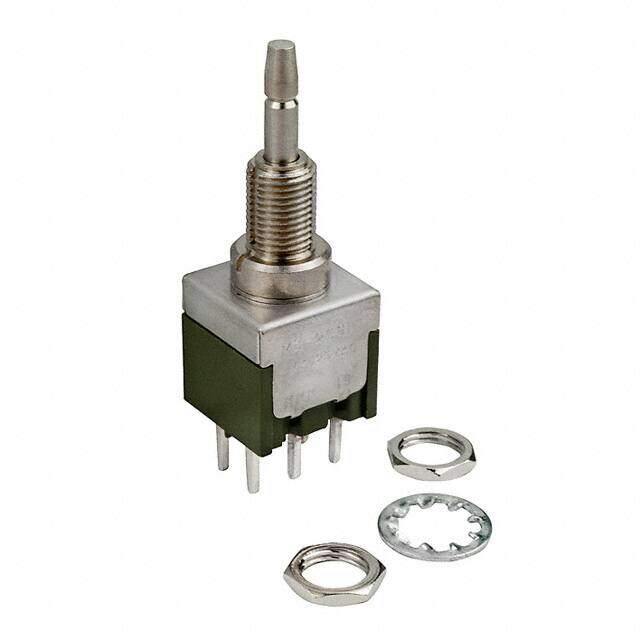

MB2061LS1W03
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 6A 125V
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount Panel
Mounting Type Panel Mount, Rear
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
Series MB2000
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC 3A DC
Current Rating 3A
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Electrical Life 25,000 Cycles
Mechanical Life 100,000 Cycles
Compliance
RoHS Status ROHS3 Compliant
