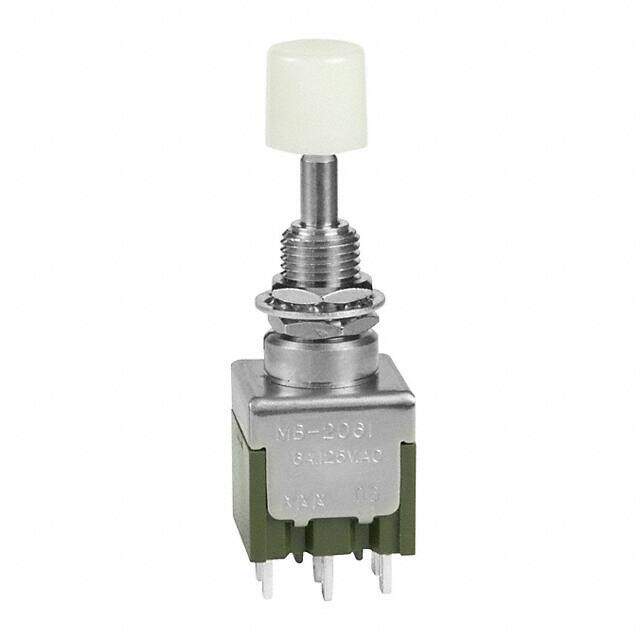

MB2061LS1W01-BB
RoHS
RoHS compliant
RoHS compliantPackage 315
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 6A 125V
PDF
/
Inventory: 4470
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount, Rear
Package / Case 315
Housing Material Resin
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
Series MB2000
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC 3A DC
Orientation Vertical
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Color - Actuator/Cap White
Electrical Life 25,000 Cycles
Mechanical Life 100,000 Cycles
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
