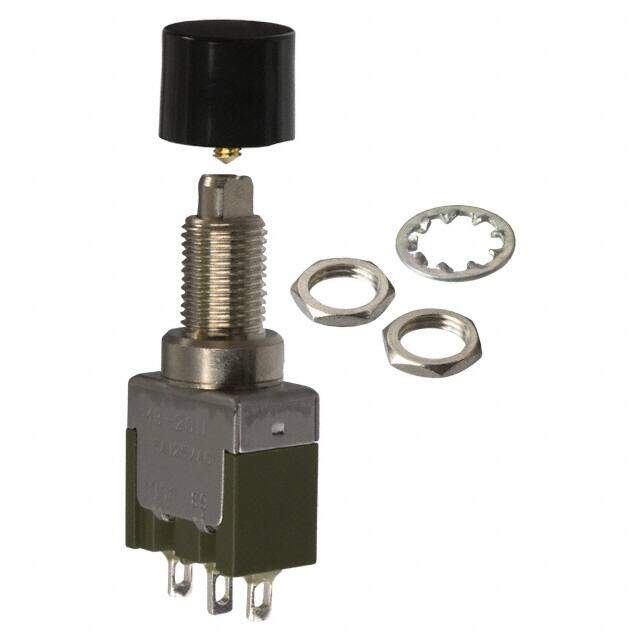

MB2011SS4W01-CA
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches Pushbutton Switches
PDF
/
Buying Options
Total Price: USD $4.86
Unit Price: USD $4.85773
≥1 USD $4.85773
≥200 USD $1.880073
≥500 USD $1.814428
≥1000 USD $1.781605
Inventory: 1138
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Plating Silver
Mounting Type Panel Mount, Rear
Surface Mount NO
Housing Material Resin
Actuator Material POLYSTYRENE
Terminal Material COPPER ALLOY
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Series MB2000
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC 3A DC
Reach Compliance Code not_compliant
Current Rating 6A
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Length or Diameter 13.0048mm
Body Breadth 7.8994 mm
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Contact Resistance 0.01mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 25,000 Cycles
Mechanical Life 100,000 Cycles
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@250VAC
Contact Voltage(AC)-Max 250V
PCB Hole Count 3
Contact Function ON-(ON)
Actuator Travel 1.8034 mm
Solderability WAVE
Bushing Length 0.335 inch
Dimensions
Body Height 40.3352mm
Length - Termination 0.157 inch
Actuator Length 0.406 inch
Compliance
Flammability Rating UL94 V-0
