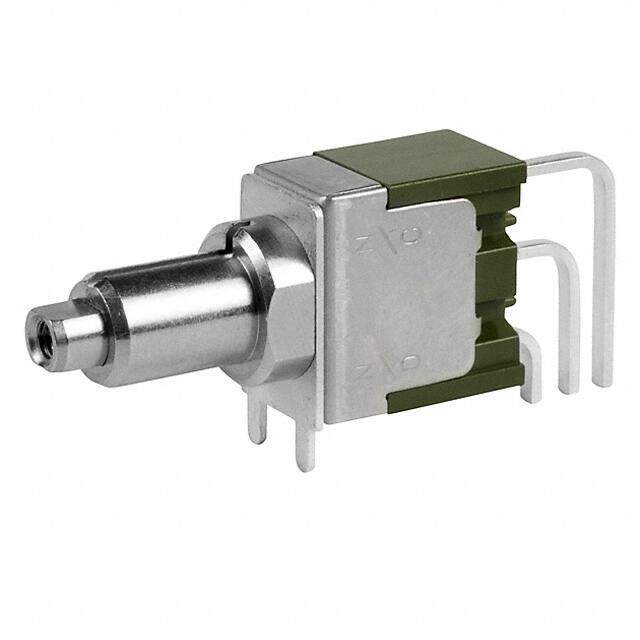

MB2011SS2W45

NKK Switches
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 6A 125V
PDF
/
Inventory: 3893
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Contact Plating Silver
Mount Through Hole, Vertical
Mounting Type Through Hole, Right Angle, Vertical
Housing Material Resin

Technical

Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
Series MB2000
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC 3A DC
Orientation Vertical
Current Rating 3A
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Electrical Life 25,000 Cycles
Mechanical Life 100,000 Cycles
Life (Cycles) 50000 cycles

Compliance

RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
