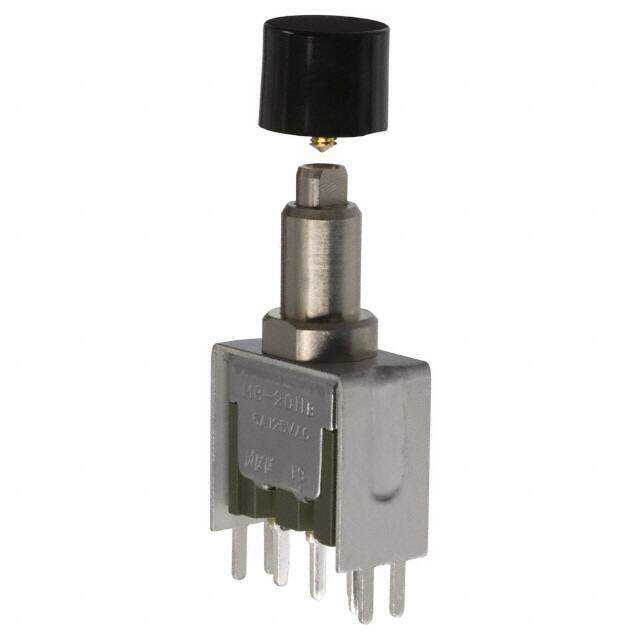

MB2011SS2W13-CA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 6A 125V
PDF
/
Buying Options
Total Price: USD $6.97
Unit Price: USD $6.965344
≥1 USD $6.965344
≥10 USD $6.571083
≥100 USD $6.199128
≥500 USD $5.848241
≥1000 USD $5.517211
Inventory: 2057
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Body Height 41.7322mm
Length 16.2mm
Technical
Bushing Diameter 0.244 inch
Solderability WAVE
Contact Function ON-(ON)
PCB Hole Count 7
Contact Timing SLOW-MAKE/-BREAK
Contact (AC) Max Rating R Load 3A@250VAC
Contact Current(AC)-Max 3A
Contact Current Rating 6A
Mechanical Life 100,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Max Current Rating 6A
Max Voltage Rating (AC) 250V
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.01mOhm
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Body Breadth 7.8994 mm
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 3A
Reach Compliance Code not_compliant
Depth 9mm
Orientation Vertical
Current Rating (Amps) 6A AC 3A DC
Voltage - Rated DC 30V
Type Standard
ECCN Code EAR99
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series MB2000
Published 2011
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Terminal Material COPPER ALLOY
Actuator Material Brass
Housing Material STAINLESS STEEL
Insulation Material DIALLYL PHTHALATE
Mounting Type Through Hole
Mount Through Hole
Contact Material Silver
Supply Chain
Factory Lead Time 5 Weeks
