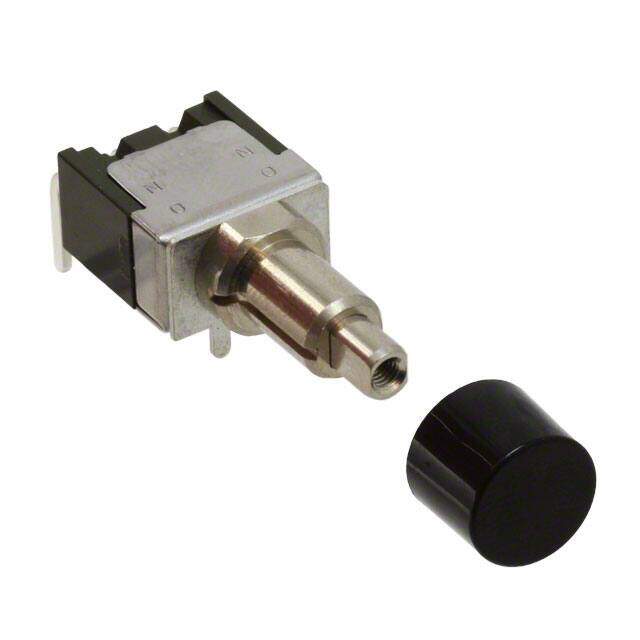

MB2011SS2G30-CA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $8.55
Unit Price: USD $8.5536
≥1 USD $8.5536
≥10 USD $7.70704
Inventory: 63
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Insulation Material DIALLYL PHTHALATE
Housing Material STAINLESS STEEL
Actuator Material POLYSTYRENE
Terminal Material COPPER ALLOY
End Contact Material COPPER ALLOY
End Contact Plating GOLD OVER NICKEL
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
PCB Hole Count 5
Contact Function ON-(ON)
Actuator Travel 1.8034 mm
Solderability WAVE
Bushing Length 0.335 inch
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Bushing Diameter 0.244 inch
Contact Timing SLOW-MAKE/-BREAK
Contact Current Rating 100mA
Mechanical Life 100,000 Cycles
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.02mOhm
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Body Breadth 7.8994 mm
Body Length or Diameter 13.0048mm
Voltage - Rated AC 28V
Termination Style PC Pin
Reach Compliance Code not_compliant
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Terminal Finish Gold (Au)
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series MB2000
Dimensions
Body Height 39.116mm
Length - Termination 0.169 inch
Actuator Length 0.406 inch
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
