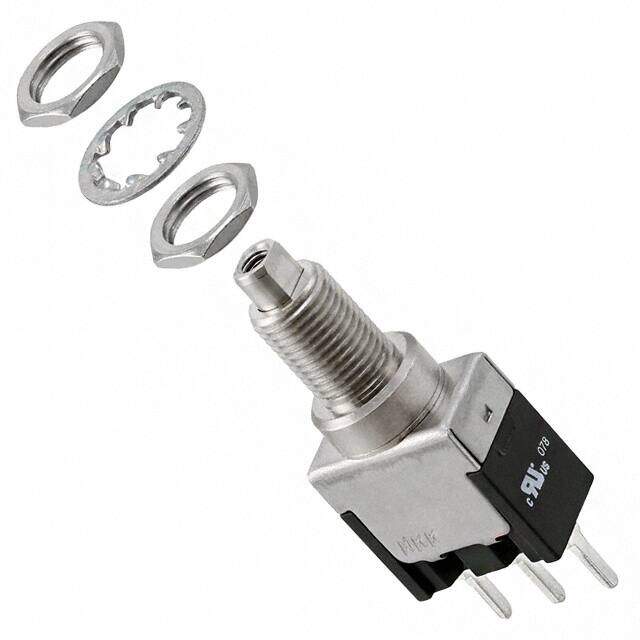

MB2011SS1W03/U
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches NKK PUSHBUTTON SW SPDT ON-(ON) PC MT
PDF
/
Buying Options
Total Price: USD $1.57
Unit Price: USD $1.574167
≥1 USD $1.574167
Inventory: 1087
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP67
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.118 inch
Length - Termination 0.25 inch
Body Height 17.018mm
Technical
Actuator Finish NICKEL
Bushing Length 0.335 inch
Actuator Travel 1.8034 mm
Contact Function ON-(ON)
PCB Hole Count 3
Contact Voltage(AC)-Max 250V
Contact (AC) Max Rating R Load 3A@250VAC
Contact Current(AC)-Max 3A
Mechanical Life 100,000 Cycles
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Contact Voltage(DC)-Max 30V
Contact Current(DC)-Max 3A
Insulation Resistance 1000000000Ohm
Contact Resistance 0.01mOhm
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Plunger for Cap
Body Breadth 7.8994 mm
Body Length or Diameter 13.0048mm
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 6A
Current Rating (Amps) 6A AC 3A DC
Voltage - Rated DC 30V
Type Standard
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series MB2000
Published 2006
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material BRASS
Housing Material STAINLESS STEEL
Insulation Material DIALLYL PHTHALATE
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Silver
Supply Chain
Factory Lead Time 5 Weeks
