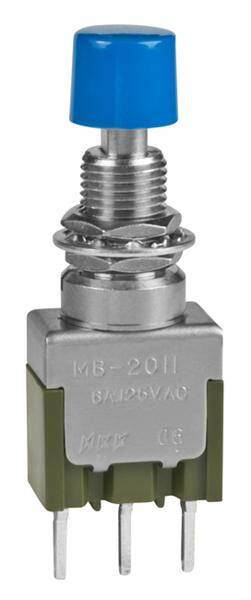

MB2011SS1W03-BG
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches ON(ON) .335 BSHG PC .315 BLUE CAP 6A
PDF
/
Inventory: 6806
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Resin
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
Series MB2000
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC 3A DC
Current Rating 3A
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Color - Actuator/Cap Blue
Electrical Life 25,000 Cycles
Mechanical Life 100,000 Cycles
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
