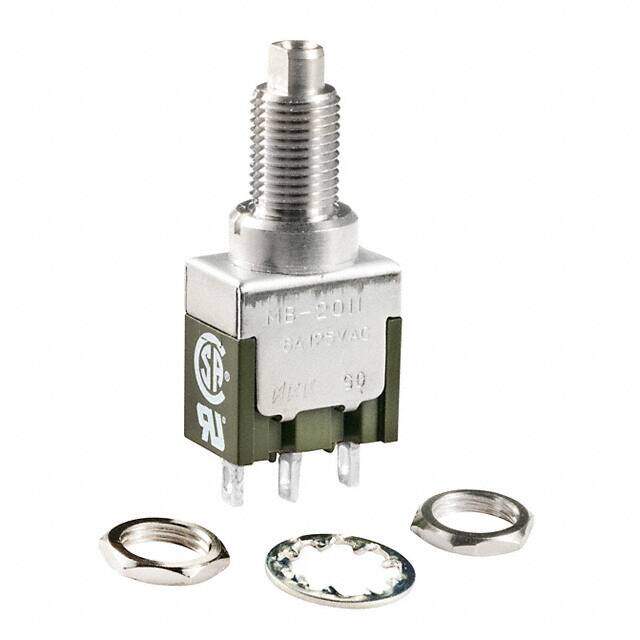

MB2011SS1W01/UC-BA
RoHS
RoHS compliant
RoHS compliantPackage 315
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 6A 125V
PDF
/
Buying Options
Total Price: USD $6.78
Unit Price: USD $6.7848
≥1 USD $6.7848
Inventory: 101
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Bushing
Mounting Type Panel Mount, Rear
Package / Case 315
Insulation Material DIALLYL PHTHALATE
Housing Material STAINLESS STEEL
Actuator Material BRASS
Center Contact Material SILVER ALLOY
End Contact Material SILVER
End Contact Plating SILVER
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
Series MB2000
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Standard
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC 3A DC
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Length or Diameter 13.0048mm
Body Breadth 7.8994 mm
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Contact Resistance 0.01mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Contact Current(DC)-Max 3A
Contact Voltage(DC)-Max 30V
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 25,000 Cycles
Mechanical Life 100,000 Cycles
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@250VAC
Contact Timing SLOW-MAKE/-BREAK
Contact Voltage(AC)-Max 250V
Contact Function ON-(ON)
Actuator Travel 1.8034 mm
Bushing Length 0.335 inch
Actuator Finish NICKEL
Dimensions
Body Height 17.018mm
Length - Termination 0.157 inch
Actuator Length 0.118 inch
Compliance
RoHS Status ROHS3 Compliant
