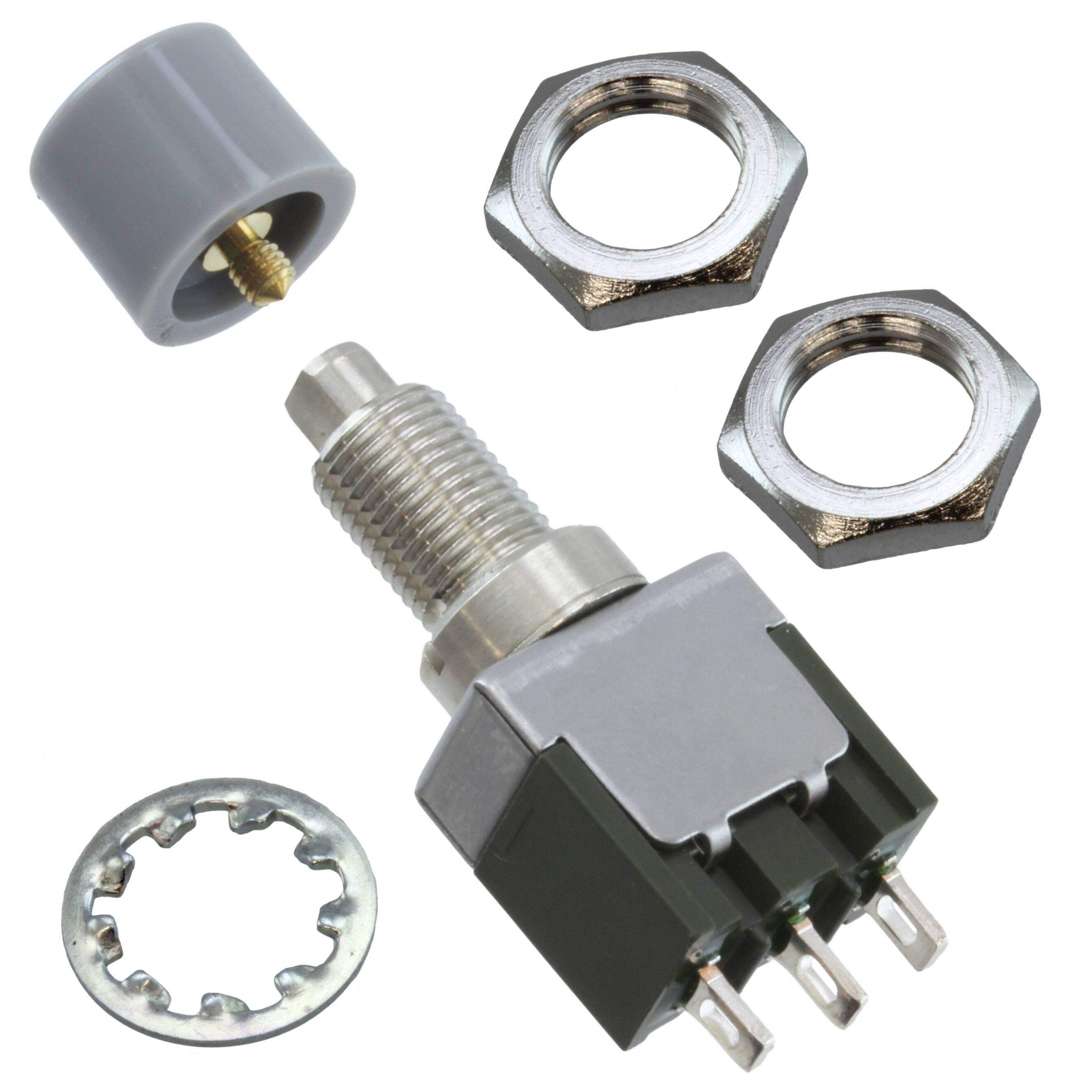

MB2011SS1W01-CH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches SPDT ON-(ON) 6A .394 GRAY CAP SOLDER LUG
PDF
/
Buying Options
Total Price: USD $4.78
Unit Price: USD $4.77633
≥1 USD $4.77633
≥200 USD $1.848563
≥500 USD $1.784231
≥1000 USD $1.751409
Inventory: 1165
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Resin
Actuator Material POLYSTYRENE
Terminal Material COPPER ALLOY
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
Series MB2000
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC 3A DC
Orientation Vertical
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Length or Diameter 13.0048mm
Body Breadth 7.8994 mm
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Contact Resistance 0.01mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Gray
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 25,000 Cycles
Mechanical Life 100,000 Cycles
Contact Current Rating 3A
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@250VAC
Contact Voltage(AC)-Max 250V
PCB Hole Count 3
Contact Function ON-(ON)
Actuator Travel 1.8034 mm
Solderability WAVE
Bushing Length 0.335 inch
Life (Cycles) 50000 cycles
Dimensions
Body Height 40.3352mm
Length - Termination 0.157 inch
Actuator Length 0.406 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
