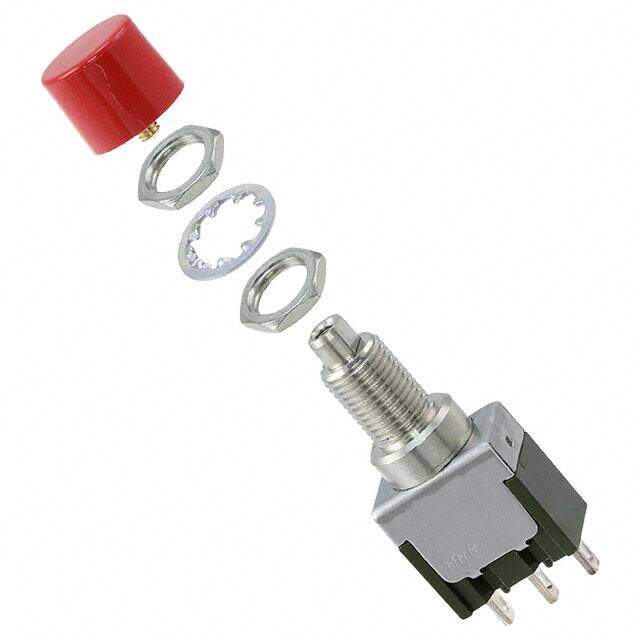

MB2011SS1W01-CC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 6A 125V
PDF
/
Buying Options
Total Price: USD $6.83
Unit Price: USD $6.8288
≥1 USD $6.8288
≥10 USD $6.13536
≥100 USD $5.852352
≥500 USD $5.600496
Inventory: 110
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 13mm
Technical
Contact Current Rating 6A
Mechanical Life 100,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 25,000 Cycles
Max Current Rating 6A
Max Voltage Rating (AC) 250V
Color - Actuator/Cap Red
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Depth 10mm
Current Rating (Amps) 6A AC 3A DC
Voltage - Rated DC 30V
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series MB2000
Published 2015
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass
Mounting Type Panel Mount, Rear
Mount Panel
Contact Material Silver
Supply Chain
Factory Lead Time 5 Weeks
