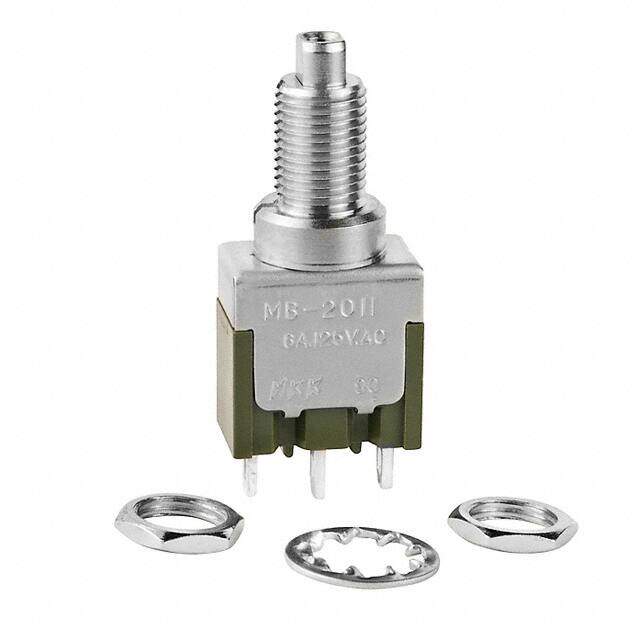

MB2011SS1W01
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Pushbutton Switches
Description
Switch Push Button ON (ON) SPDT Round Plunger 6A 250VAC 30VDC Momentary Contact Solder Lug Panel Mount
PDF
/
Buying Options
Total Price: USD $6.41
Unit Price: USD $6.4064
≥1 USD $6.4064
Inventory: 45
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount, Rear
Package / Case 125
Housing Material Resin
Actuator Material Brass
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2006
Series MB2000
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Number of Positions 2
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC 3A DC
Orientation Vertical
Depth 7.9mm
Current Rating 6A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Contact Resistance 10mOhm
Insulation Resistance 1GOhm
Max Voltage Rating (AC) 250V
Max Current Rating 6A
Electrical Life 25,000 Cycles
Number of Poles 1
Max Voltage Rating (DC) 30V
Mechanical Life 100,000 Cycles
Contact Current Rating 6A
Dimensions
Height 21mm
Length 13mm
Width 13mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
