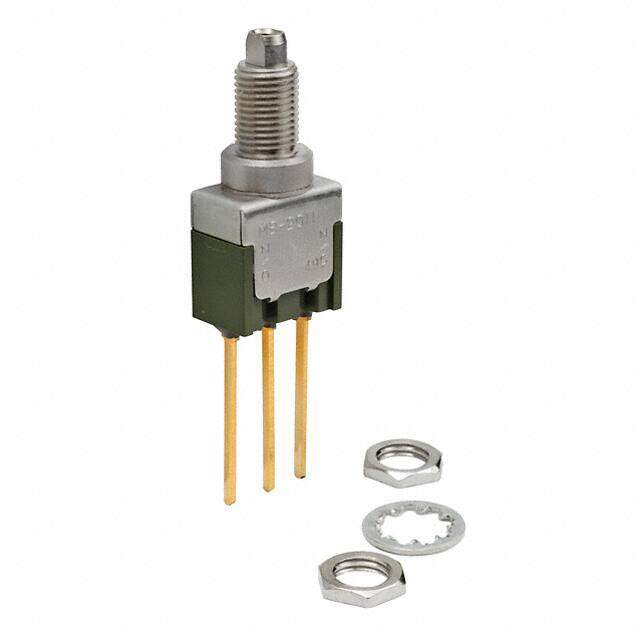

MB2011SS1G06
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $6.64
Unit Price: USD $6.6352
≥1 USD $6.6352
≥10 USD $5.962
Inventory: 78
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Resin
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
Series MB2000
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Wrap
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Termination Style Wire Wrap
Voltage - Rated AC 28V
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Electrical Life 50,000 Cycles
Mechanical Life 100,000 Cycles
Life (Cycles) 50000 cycles
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
