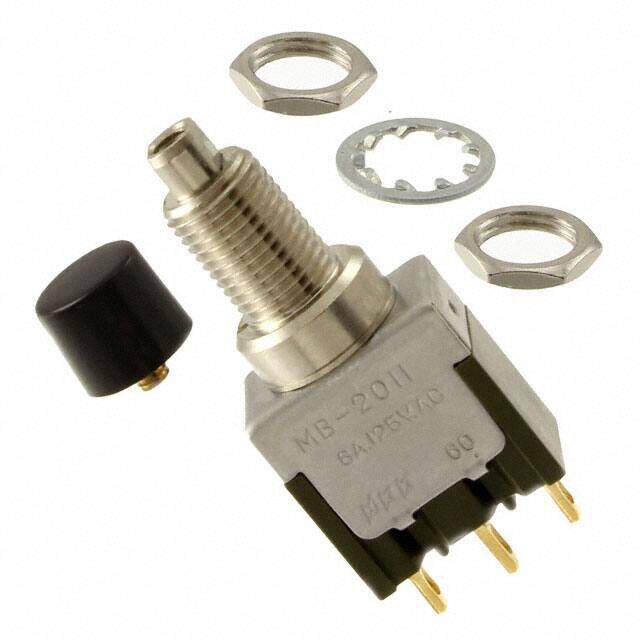

MB2011SS1A01-BA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches SPDT ON-(ON) BLK CAP
PDF
/
Buying Options
Total Price: USD $9.25
Unit Price: USD $9.253319
≥1 USD $9.253319
≥200 USD $3.581591
≥500 USD $3.455553
≥1000 USD $3.393847
Inventory: 5950
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Body Height 38.8366mm
Length 13mm
Technical
Actuator Finish NICKEL
Contact Function ON-(ON)
Contact (AC) Max Rating R Load 6A@125VAC
Contact Current(AC)-Max 6A
Contact Current Rating 6A
Mechanical Life 100,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Max Current Rating 6A
Max Voltage Rating (AC) 250V
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.02mOhm
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Body Breadth 7.8994 mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Reach Compliance Code not_compliant
Depth 9mm
Current Rating (Amps) 6A AC 3A DC
Voltage - Rated DC 30V
Power Rating 400mW
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series MB2000
Published 2011
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass
Housing Material Resin
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Gold
Contact Material Silver
Supply Chain
Factory Lead Time 8 Weeks
