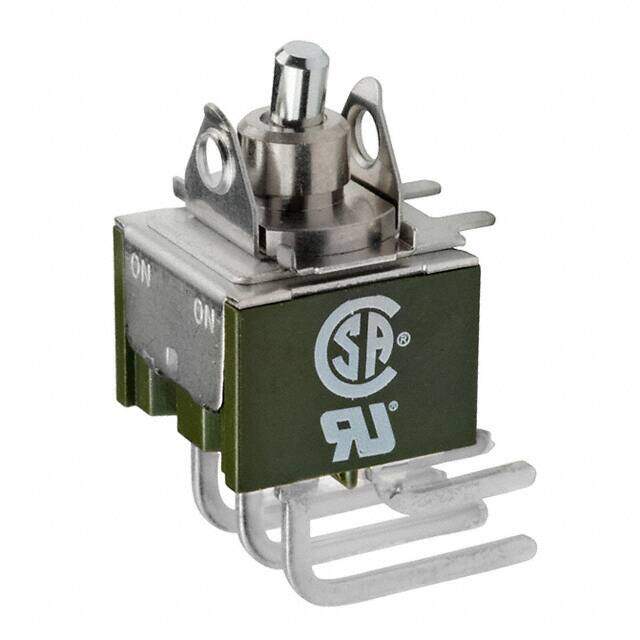

MB2011SS1A01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 6A 125V
PDF
/
Buying Options
Total Price: USD $8.18
Unit Price: USD $8.1752
≥1 USD $8.1752
≥10 USD $7.36736
Inventory: 113
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Length 13mm
Technical
Life (Cycles) 50000 cycles
Mechanical Life 100,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 25,000 Cycles
Max Current Rating 6A
Max Voltage Rating (AC) 250V
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Depth 7.9mm
Orientation Vertical
Current Rating (Amps) 6A AC 3A DC
Voltage - Rated DC 30V
Power Rating 400mW
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series MB2000
Published 2011
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass
Housing Material Resin
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Gold
Contact Material Silver
Supply Chain
Factory Lead Time 8 Weeks
