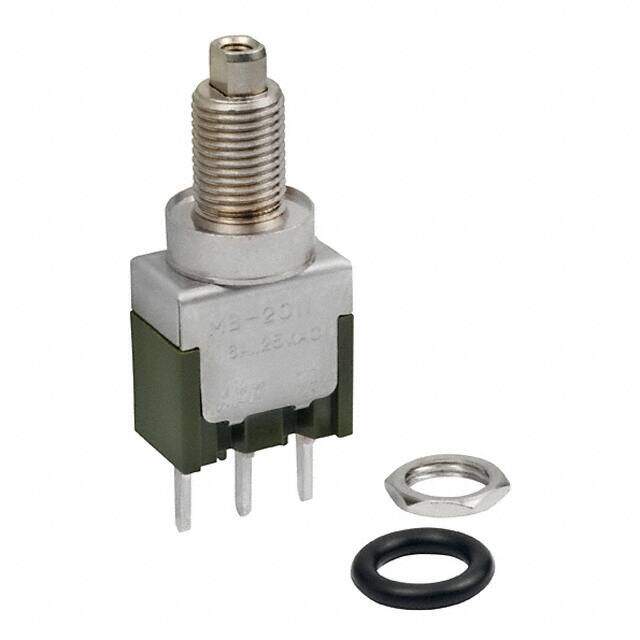

MB2011SD3W03
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 6A 125V
PDF
/
Inventory: 9846
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount, Rear
Actuator Material Brass
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Series MB2000
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC 3A DC
Orientation Vertical
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 7.9mm
Current Rating 3A
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Max Voltage Rating (AC) 250V
Max Current Rating 6A
Electrical Life 25,000 Cycles
Max Voltage Rating (DC) 30V
Mechanical Life 50,000 Cycles
Dimensions
Length 13mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
Ratings Dust Tight, IP67, Waterproof
