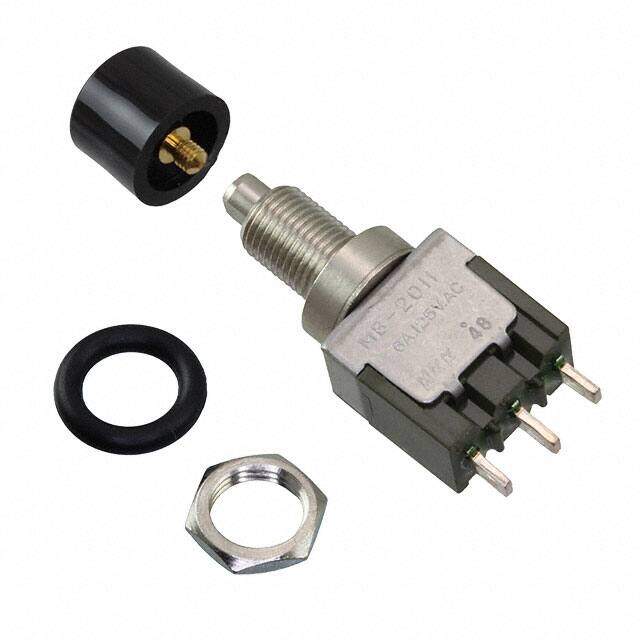

MB2011SD3G01-CA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches ON(ON) .4VA .394 BLK CAP SPLSHPRF SLDR LG
PDF
/
Buying Options
Total Price: USD $7.83
Unit Price: USD $7.832
≥1 USD $7.832
Inventory: 94
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Resin
Actuator Material Brass
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2015
Series MB2000
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Additional Feature SPLASH PROOF
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Orientation Vertical
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 10mm
Reach Compliance Code not_compliant
Termination Style Solder Lug
Voltage - Rated AC 28V
Body Breadth 7.8994 mm
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Max Voltage Rating (AC) 28V
Max Current Rating 100mA
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 50,000 Cycles
Max Voltage Rating (DC) 28V
Mechanical Life 50,000 Cycles
PCB Hole Count 3
Contact Function ON-(ON)
Solderability WAVE
Dimensions
Length 13mm
Body Height 40.3352mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
Ratings Dust Tight, IP67, Waterproof
