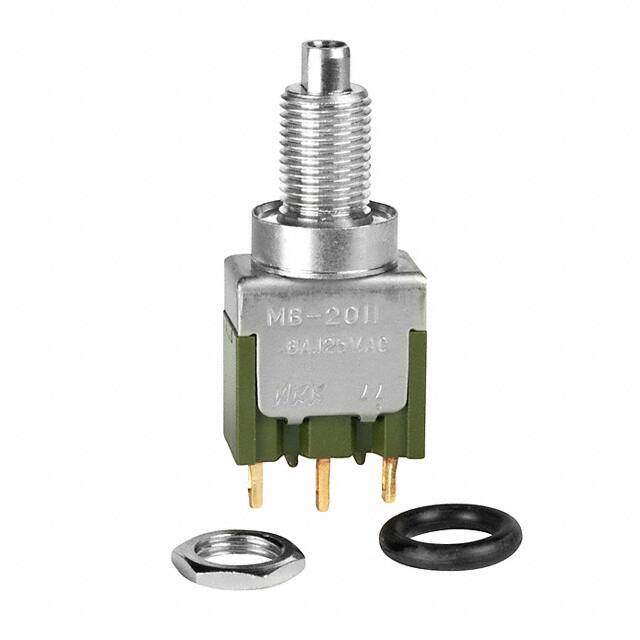

MB2011SD3A01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 6A 125V
PDF
/
Inventory: 7649
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Body Height 40.3352mm
Length 13mm
Technical
Solderability WAVE
Contact Function ON-(ON)
Actuator Color BLACK
PCB Hole Count 3
Contact (AC) Max Rating R Load 6A@125VAC
Contact Current(AC)-Max 6A
Mechanical Life 50,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Max Current Rating 6A
Max Voltage Rating (AC) 250V
Insulation Resistance 1000000000Ohm
Contact Resistance 0.02mOhm
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Plunger for Cap
Body Breadth 7.8994 mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Reach Compliance Code not_compliant
Depth 7.9mm
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Vertical
Current Rating (Amps) 6A AC 3A DC
Voltage - Rated DC 30V
Power Rating 400mW
Additional Feature SPLASH PROOF
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series MB2000
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Terminal Material COPPER ALLOY
Actuator Material Brass
Housing Material Resin
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Gold
Contact Material Silver
Supply Chain
Factory Lead Time 8 Weeks
