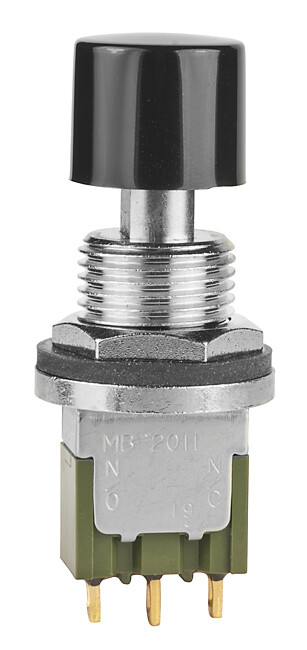

MB2011SB3G01-DA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches ON(ON) 12MM SPLSHPRF BSHG SLDR.52 BLK CAP
PDF
/
Inventory: 1463
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Resin
Actuator Material POLYSTYRENE
Terminal Material COPPER ALLOY
End Contact Material COPPER ALLOY
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2012
Series MB2000
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Additional Feature SPLASH-PROOF BUSHING
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code not_compliant
Termination Style Solder Lug
Voltage - Rated AC 28V
Body Length or Diameter 13.0048mm
Body Breadth 7.8994 mm
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 12.50mm Dia
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Contact Function ON-(ON)
Actuator Travel 1.8034 mm
Solderability WAVE
Bushing Length 0.472 inch
Dimensions
Body Height 43.9674mm
Length - Termination 0.157 inch
Actuator Length 0.59 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Ratings Dust Tight, IP67, Waterproof
