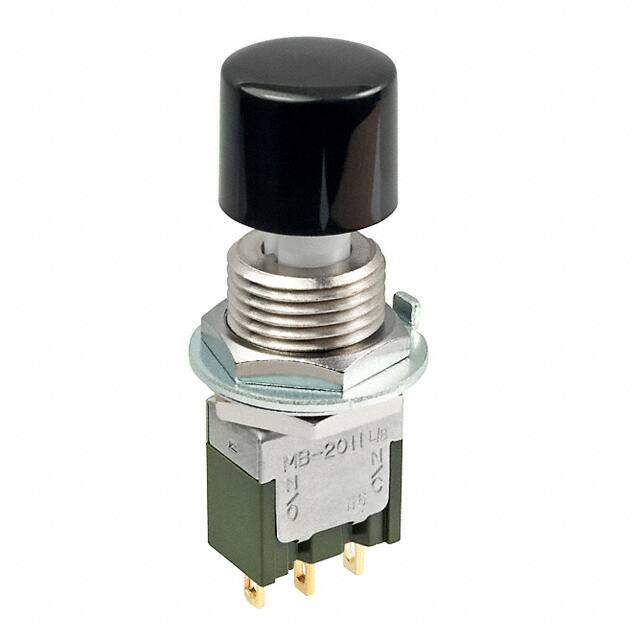

MB2011SB1G01-DA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $8.55
Unit Price: USD $8.5536
≥1 USD $8.5536
≥10 USD $7.70704
≥100 USD $7.384256
Inventory: 115
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Dimensions
Body Height 43.9674mm
Length 13.2mm
Technical
Bushing Diameter 0.472 inch
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Solderability WAVE
Contact Function ON-(ON)
Mechanical Life 100,000 Cycles
Max Voltage Rating (DC) 28V
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Max Current Rating 100mA
Max Voltage Rating (AC) 28V
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.02mOhm
Panel Cutout Dimensions Circular - 12.50mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Body Breadth 7.8994 mm
Voltage - Rated AC 28V
Termination Style Solder Lug
Reach Compliance Code not_compliant
Depth 13.2mm
Orientation Vertical
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series MB2000
Published 2012
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Polyacetal
Housing Material STAINLESS STEEL
Insulation Material DIALLYL PHTHALATE
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 8 Weeks
