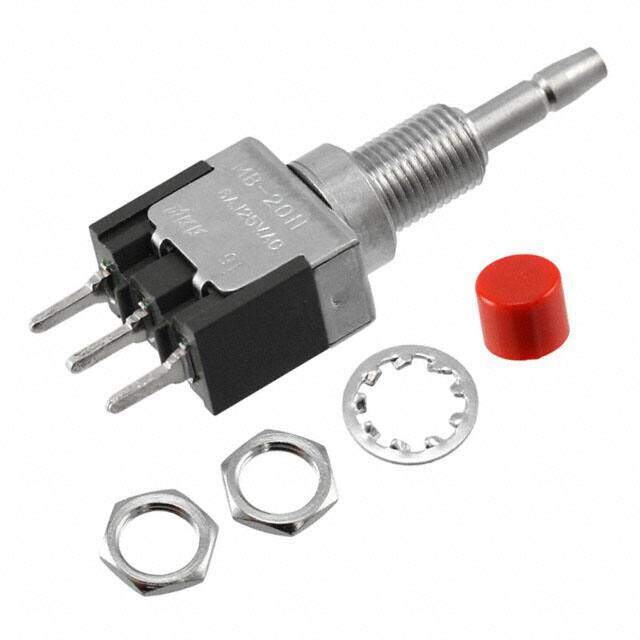

MB2011LS1W03-CC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 6A 125V
PDF
/
Buying Options
Total Price: USD $6.33
Unit Price: USD $6.3272
≥1 USD $6.3272
≥10 USD $5.69536
≥100 USD $5.409184
≥500 USD $5.180032
≥1000 USD $5.008432
≥3000 USD $4.750803
Inventory: 515
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Resin
Actuator Material Brass
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
Series MB2000
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC 3A DC
Orientation Vertical
Depth 10mm
Current Rating 3A
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Color - Actuator/Cap Red
Max Voltage Rating (AC) 250V
Max Current Rating 6A
Electrical Life 25,000 Cycles
Max Voltage Rating (DC) 30V
Mechanical Life 100,000 Cycles
Contact Current Rating 6A
Dimensions
Length 13mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
