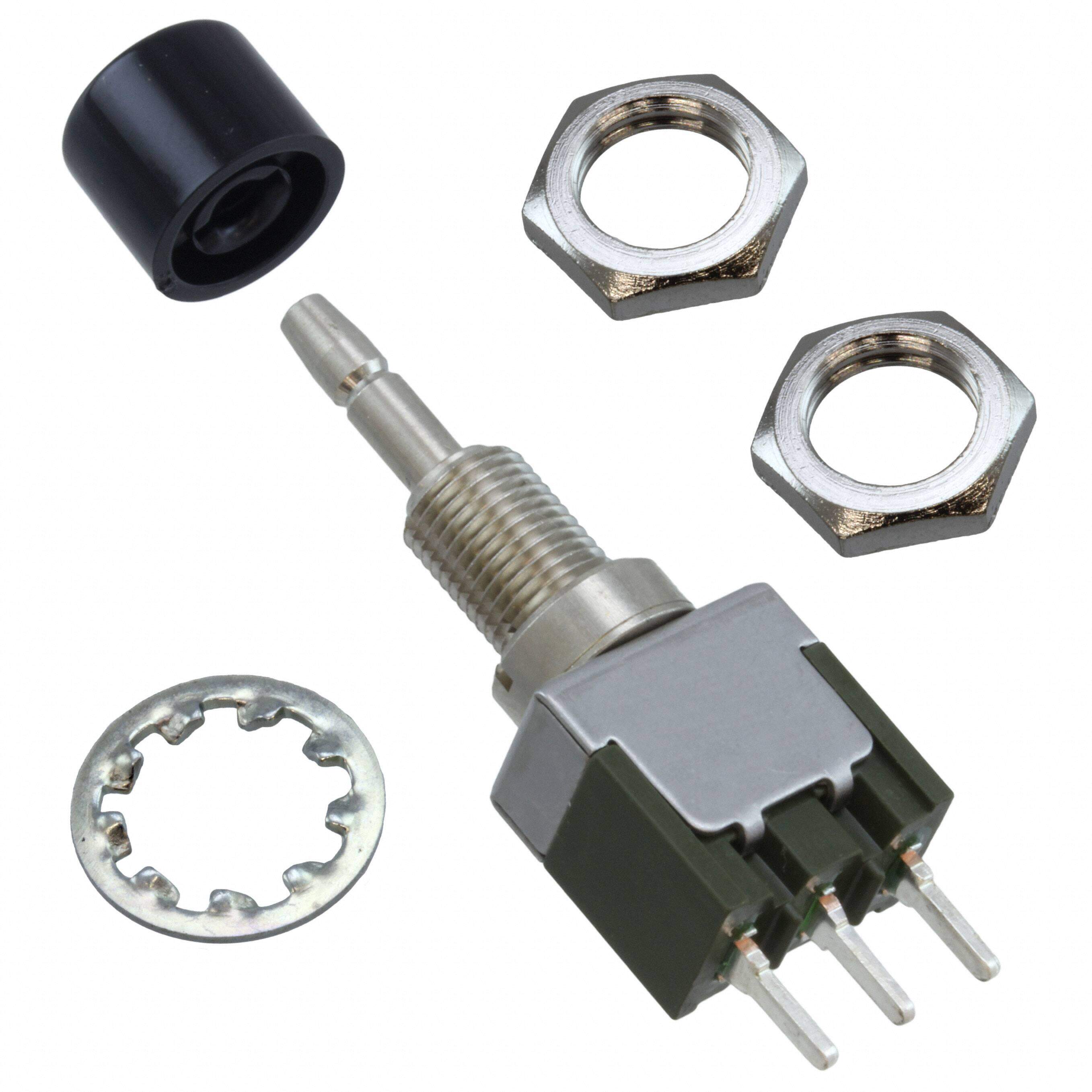

MB2011LS1W03-CA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 6A 125V
PDF
/
Buying Options
Total Price: USD $6.33
Unit Price: USD $6.3272
≥1 USD $6.3272
≥10 USD $5.69536
≥100 USD $5.409184
≥500 USD $5.180032
≥1000 USD $5.008432
≥3000 USD $4.750803
Inventory: 585
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.457 inch
Length - Termination 0.25 inch
Body Height 43.9928mm
Technical
Bushing Diameter 0.25 inch
Bushing Length 0.335 inch
Solderability WAVE
Actuator Travel 4.445 mm
Contact Function ON-(ON)
PCB Hole Count 3
Contact Voltage(AC)-Max 250V
Contact Timing SLOW-MAKE/-BREAK
Contact (AC) Max Rating R Load 3A@250VAC
Contact Current(AC)-Max 3A
Mechanical Life 100,000 Cycles
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.01mOhm
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Body Breadth 7.8994 mm
Body Length or Diameter 13.0048mm
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 3A
Reach Compliance Code not_compliant
Orientation Vertical
Current Rating (Amps) 6A AC 3A DC
Voltage - Rated DC 30V
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series MB2000
Published 2011
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
End Contact Plating SILVER
End Contact Material SILVER
Terminal Material COPPER ALLOY
Center Contact Material SILVER
Center Contact Plating SILVER
Actuator Material POLYCARBONATE
Housing Material STAINLESS STEEL
Insulation Material DIALLYL PHTHALATE
Mounting Type Panel Mount, Rear
Mount Panel
Supply Chain
Factory Lead Time 5 Weeks
