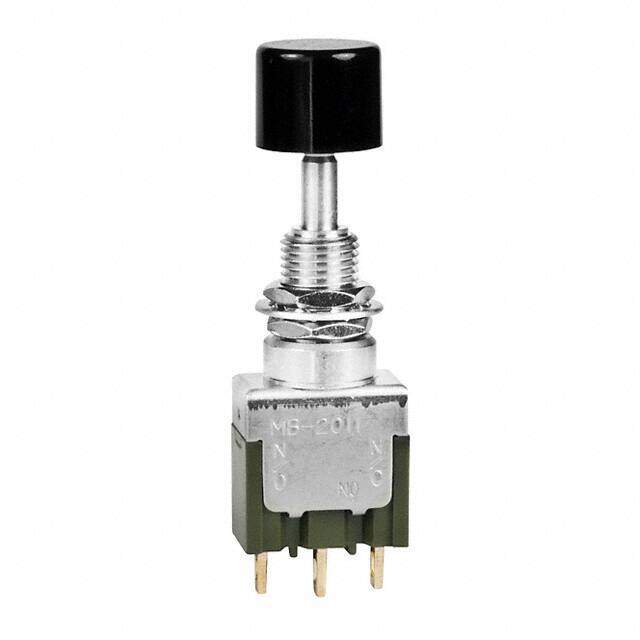

MB2011LS1G01-CA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Inventory: 4795
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.457 inch
Length - Termination 0.157 inch
Body Height 41.6306mm
Technical
Bushing Diameter 0.25 inch
Bushing Length 0.335 inch
Solderability WAVE
Actuator Travel 4.445 mm
Contact Function ON-(ON)
PCB Hole Count 3
Contact Timing SLOW-MAKE/-BREAK
Mechanical Life 100,000 Cycles
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.02mOhm
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Body Breadth 7.8994 mm
Body Length or Diameter 13.0048mm
Voltage - Rated AC 28V
Termination Style Solder Lug
Reach Compliance Code not_compliant
Orientation Vertical
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series MB2000
Published 2015
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
End Contact Plating GOLD OVER NICKEL
End Contact Material COPPER ALLOY
Terminal Material COPPER ALLOY
Center Contact Plating GOLD OVER NICKEL
Actuator Material POLYCARBONATE
Housing Material STAINLESS STEEL
Insulation Material DIALLYL PHTHALATE
Mounting Type Panel Mount, Rear
Mount Panel
Supply Chain
Factory Lead Time 8 Weeks
