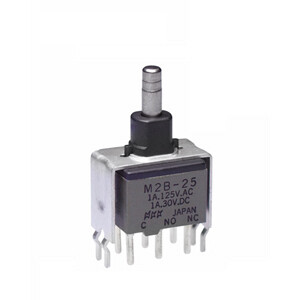

M2B25BA5G13
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch Push Button ON (ON) DPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact V-Bracket Bracket Mount
PDF
/
Inventory: 1654
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 16.25mm
Technical
Mechanical Life 200,000 Cycles
Max Voltage Rating (DC) 28V
Electrical Life 100,000 Cycles
Max Current Rating 100mA
Max Voltage Rating (AC) 28V
Switch Function On-Mom
Circuit DPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 28V
Termination Style PC Pin
Current Rating 1A
Depth 11.5mm
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Process Sealed
Series M2
Published 2011
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass
Housing Material Polyamide
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 8 Weeks
