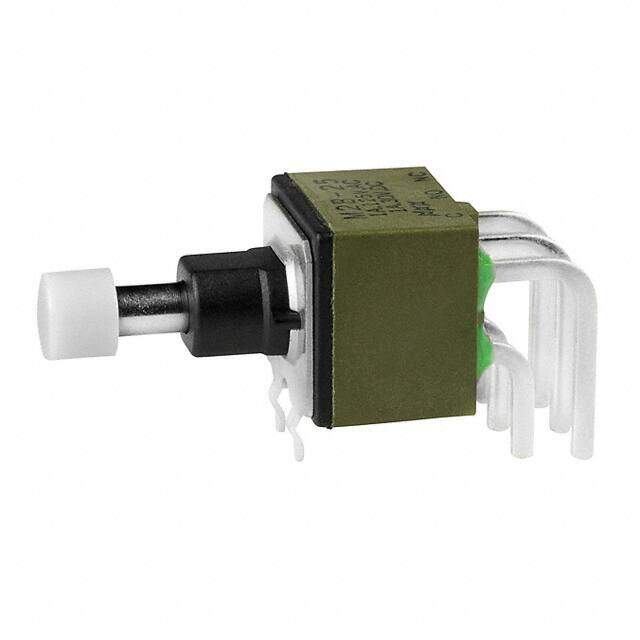

M2B25AA5W30-FB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 1A 125V
PDF
/
Buying Options
Total Price: USD $8.32
Unit Price: USD $8.3248
≥1 USD $8.3248
≥10 USD $7.50376
≥100 USD $7.189248
≥500 USD $6.83562
≥1000 USD $6.56062
≥3000 USD $6.167726
Inventory: 81
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Silver
Mount Through Hole
Mounting Type Through Hole, Right Angle
Insulation Material GLASS FILLED POLYAMIDE
Actuator Material BRASS
Terminal Material BRASS
Technical
Operating Temperature -30°C~85°C
Packaging Tray
Published 2011
Series M2
JESD-609 Code e4
Feature Process Sealed
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Power Rating 400mW
Voltage - Rated DC 30V
Current Rating (Amps) 1A AC/DC
Orientation Right Angle
Reach Compliance Code not_compliant
Current Rating 1A
Termination Style PC Pin
Voltage - Rated AC 125V
Body Length or Diameter 12.7mm
Body Breadth 11.5062 mm
Actuator Type Round, Button
Circuit DPDT
Switch Function On-Mom
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap White
Contact Current(DC)-Max 1A
Sealing EPOXY
Dielectric Withstanding Voltage 1000VAC V
Electrical Life 25,000 Cycles
Mechanical Life 200,000 Cycles
Contact Current(AC)-Max 1A
Contact (AC) Max Rating R Load 1A@125VAC
PCB Hole Count 10
Contact Function ON-(ON)
Actuator Travel 0.9906 mm
Solderability WAVE
Bushing Length 0.25 inch
Bushing Diameter 0.244 inch
Dimensions
Body Height 31.5468mm
Length - Termination 0.146 inch
Actuator Length 0.282 inch
Compliance
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
Alternative Model
