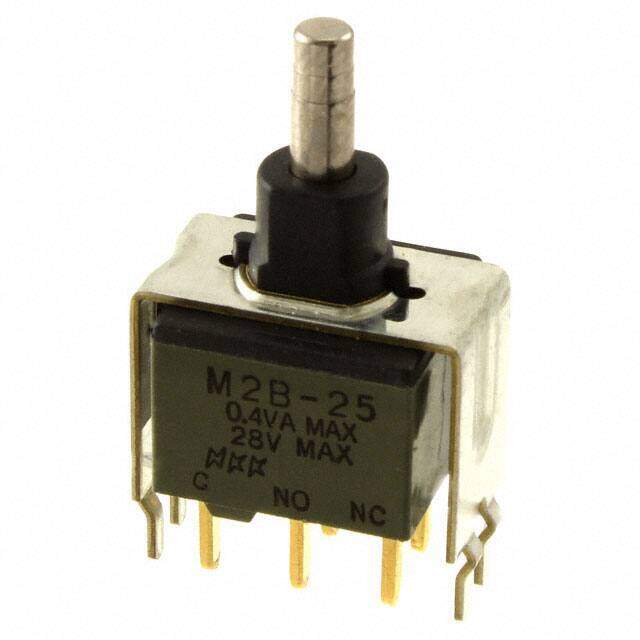

M2B25AA5G13
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $5.85
Unit Price: USD $5.852529
≥1 USD $5.852529
≥10 USD $5.521255
≥100 USD $5.208729
≥500 USD $4.913893
≥1000 USD $4.635756
Inventory: 7192
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Dimensions
Length 16.25mm
Technical
Mechanical Life 200,000 Cycles
Max Voltage Rating (DC) 28V
Electrical Life 100,000 Cycles
Max Current Rating 100mA
Max Voltage Rating (AC) 28V
Switch Function On-Mom
Circuit DPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 28V
Termination Style PC Pin
Current Rating 1A
Depth 11.5mm
Orientation Vertical
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Process Sealed
Series M2
Published 2011
Packaging Tray
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass
Housing Material Polyamide
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 14 Weeks
