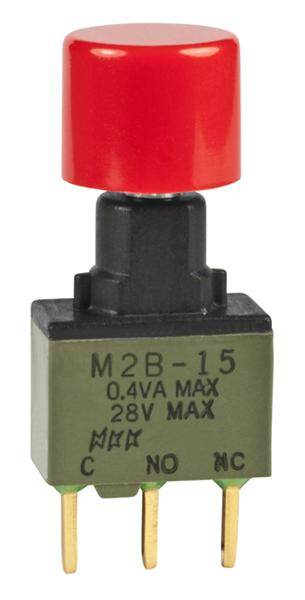

M2B15BA5G03-CC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches SPDT ON-(ON) PC .4VA PRCS SLD .4 RED CAP
PDF
/
Buying Options
Total Price: USD $6.6
Unit Price: USD $6.6
≥1 USD $6.6
≥10 USD $5.94264
≥100 USD $5.64432
≥500 USD $5.4054
≥1000 USD $5.2261
≥3000 USD $4.957383
Inventory: 102
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.307 inch
Length - Termination 0.189 inch
Body Height 30.5816mm
Technical
Bushing Diameter 0.244 inch
Bushing Length 0.25 inch
Solderability WAVE
Actuator Travel 0.9906 mm
Contact Function ON-(ON)
PCB Hole Count 3
Mechanical Life 200,000 Cycles
Electrical Life 100,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Sealing EPOXY
Color - Actuator/Cap Red
Insulation Resistance 1000000000Ohm
Contact Resistance 0.03mOhm
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Body Breadth 6.604 mm
Body Length or Diameter 12.7mm
Voltage - Rated AC 28V
Termination Style PC Pin
Current Rating 1A
Reach Compliance Code not_compliant
Orientation Vertical
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Process Sealed
JESD-609 Code e4
Series M2
Published 2011
Packaging Tray
Operating Temperature -30°C~85°C
Physical
End Contact Material COPPER
Terminal Material BRASS
Center Contact Material COPPER
Actuator Material BRASS
Insulation Material GLASS FILLED POLYAMIDE
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 14 Weeks
Alternative Model
