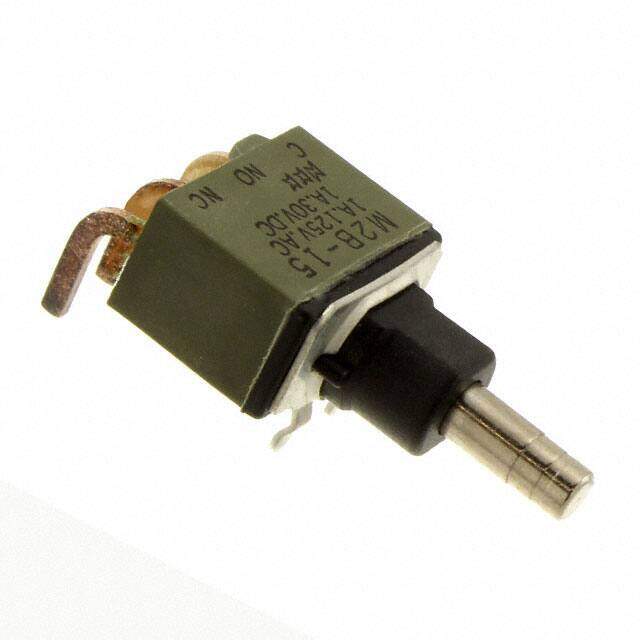

M2B15AA5W30
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
NKK SWITCHES M2B15AA5W30SWITCH, PUSHBUTTON, NON-ILLUMINATED, SPDT, 1A
PDF
/
Buying Options
Total Price: USD $5.69
Unit Price: USD $5.6936
≥1 USD $5.6936
≥10 USD $5.12952
≥100 USD $4.87168
≥500 USD $4.665232
≥1000 USD $4.510704
≥3000 USD $4.278701
Inventory: 118
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Contact Current Rating 1A
Mechanical Life 200,000 Cycles
Electrical Life 25,000 Cycles
Switch Function On-Mom
Circuit SPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 1A
Current Rating (Amps) 1A AC/DC
Voltage - Rated DC 30V
Power Rating 400mW
Type Standard
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Process Sealed
Series M2
Published 2011
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Mounting Type Through Hole, Right Angle
Mount Through Hole
Supply Chain
Factory Lead Time 14 Weeks
