M2B15AA5W13-FB
RoHS
RoHS compliant
RoHS compliantPackage 201
Category Switches / Pushbutton Switches
Description

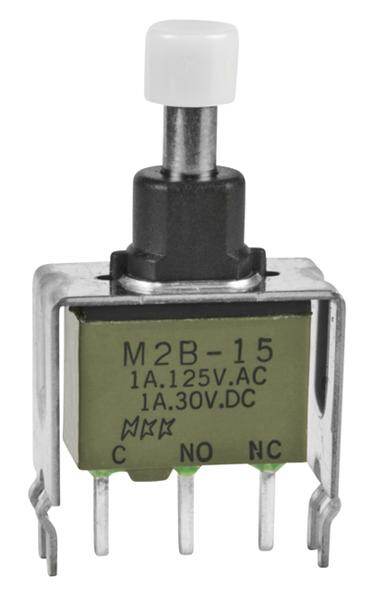

Pushbutton Switches SPDT ON(ON) BRACKET PC 1A .201 WHITE CAP
PDF
/
Inventory: 912
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Insulation Material GLASS FILLED POLYAMIDE
Actuator Material BRASS
Terminal Material BRASS
Package / Case 201
Mounting Type Through Hole
Mount Through Hole
Contact Plating Silver
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
Series M2
JESD-609 Code e4
Feature Process Sealed
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Power Rating 400mW
Voltage - Rated DC 30V
Current Rating (Amps) 1A AC/DC
Reach Compliance Code not_compliant
Current Rating 1A
Termination Style PC Pin
Voltage - Rated AC 125V
Body Length or Diameter 15.748mm
Body Breadth 8.001 mm
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap White
Contact Current(DC)-Max 1A
Sealing EPOXY
Dielectric Withstanding Voltage 1000VAC V
Electrical Life 25,000 Cycles
Mechanical Life 200,000 Cycles
Contact Current(AC)-Max 1A
Contact (AC) Max Rating R Load 1A@125VAC
PCB Hole Count 6
Contact Function ON-(ON)
Actuator Travel 0.9906 mm
Solderability WAVE
Bushing Length 0.25 inch
Bushing Diameter 0.244 inch
Supply Chain
Factory Lead Time 14 Weeks
Dimensions
Body Height 30.7848mm
Length - Termination 0.189 inch
Actuator Length 0.282 inch
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
