M2B15AA5G03-HC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

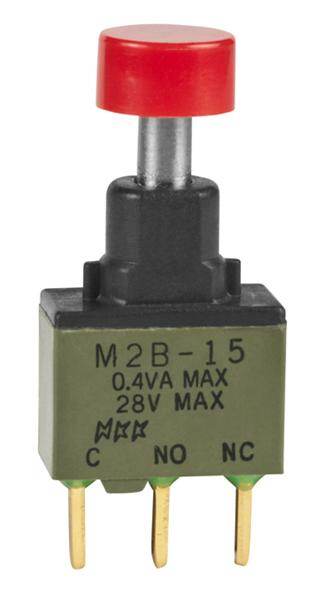

Pushbutton Switches ON-(ON) .295 RED CAP STRAIGHT PC .4VA
PDF
/
Inventory: 2561
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Insulation Material GLASS FILLED POLYAMIDE
Actuator Material BRASS
Center Contact Material COPPER
Terminal Material BRASS
End Contact Material COPPER
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
Series M2
JESD-609 Code e4
Feature Process Sealed
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Reach Compliance Code not_compliant
Current Rating 1A
Termination Style PC Pin
Voltage - Rated AC 28V
Body Length or Diameter 12.7mm
Body Breadth 6.604 mm
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Contact Resistance 0.03mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Red
Sealing EPOXY
Dielectric Withstanding Voltage 1000VAC V
Electrical Life 100,000 Cycles
Mechanical Life 200,000 Cycles
PCB Hole Count 3
Contact Function ON-(ON)
Actuator Travel 0.9906 mm
Solderability WAVE
Bushing Length 0.25 inch
Bushing Diameter 0.244 inch
Dimensions
Body Height 29.6418mm
Length - Termination 0.189 inch
Actuator Length 0.282 inch
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
