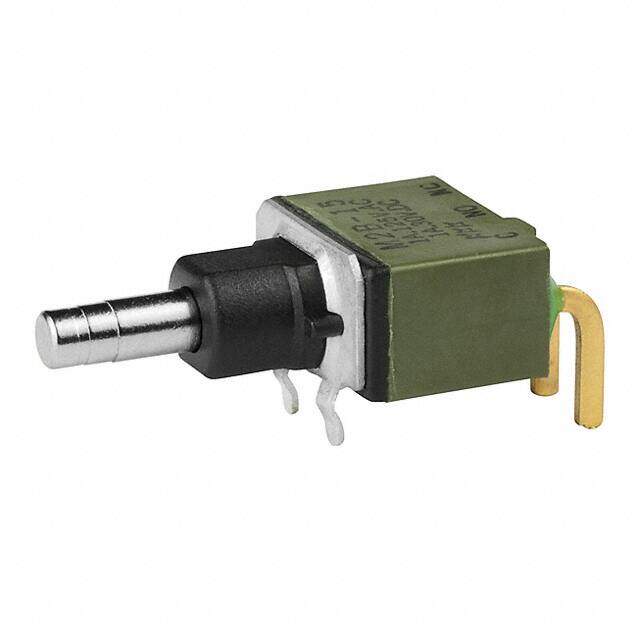

M2B15AA5A30
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 1A 125V
PDF
/
Buying Options
Total Price: USD $1.73
Unit Price: USD $1.731715
≥1 USD $1.731715
Inventory: 2891
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Body Height 27.7368mm
Length 12.7mm
Technical
Solderability WAVE
Contact Function ON-(ON)
PCB Hole Count 5
Contact (AC) Max Rating R Load 1A@125VAC
Contact Current(AC)-Max 1A
Mechanical Life 200,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Max Current Rating 1A
Max Voltage Rating (AC) 125V
Sealing EPOXY
Insulation Resistance 1000000000Ohm
Contact Resistance 0.03mOhm
Switch Function On-Mom
Circuit SPDT
Actuator Type Plunger for Cap
Body Breadth 6.604 mm
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 1A
Reach Compliance Code not_compliant
Depth 27.55mm
Current Rating (Amps) 1A AC/DC
Voltage - Rated DC 30V
Power Rating 400mW
Additional Feature Black Cap
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Process Sealed
JESD-609 Code e4
Series M2
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass
Housing Material Polyamide
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold, Silver
Contact Material Silver
Supply Chain
Factory Lead Time 19 Weeks
