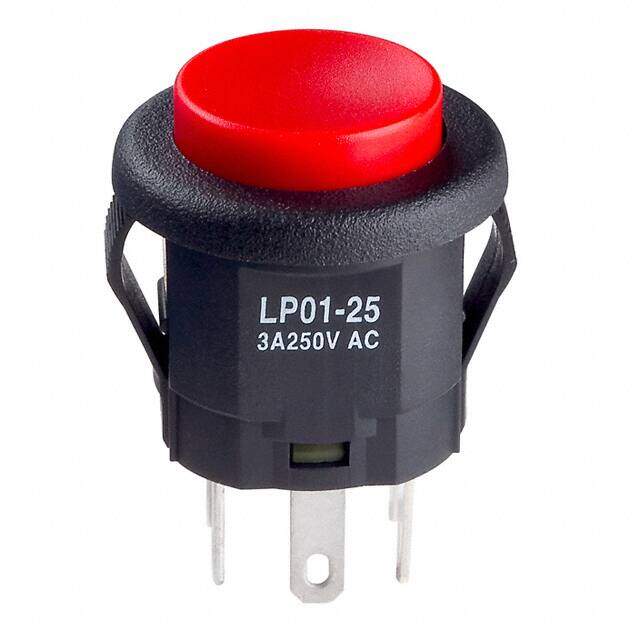

LP0125CMKW01C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $11.22
Unit Price: USD $11.22
≥1 USD $11.22
≥10 USD $10.13848
≥100 USD $9.650432
≥500 USD $9.16256
≥1000 USD $8.837312
≥3000 USD $8.295162
Inventory: 146
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Length 20mm
Technical
Contact Function ON-(ON)
Contact (AC) Max Rating R Load 3A@125VAC
Contact Current(AC)-Max 3A
Illumination Type LED
Contact Current Rating 3A
Mechanical Life 500,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Max Current Rating 3A
Max Voltage Rating (AC) 250V
Color - Actuator/Cap Red
Insulation Resistance 200000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 17.30mm Dia
Switch Function On-Mom
Circuit DPDT
Actuator Type Round, Button
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 3A
Depth 20mm
Current Rating (Amps) 3A AC/DC
Voltage - Rated DC 30V
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series LP01
Published 2006
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Actuator Material Polycarbonate
Housing Material Polyamide
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Silver
Contact Material Bronze
Supply Chain
Factory Lead Time 12 Weeks
