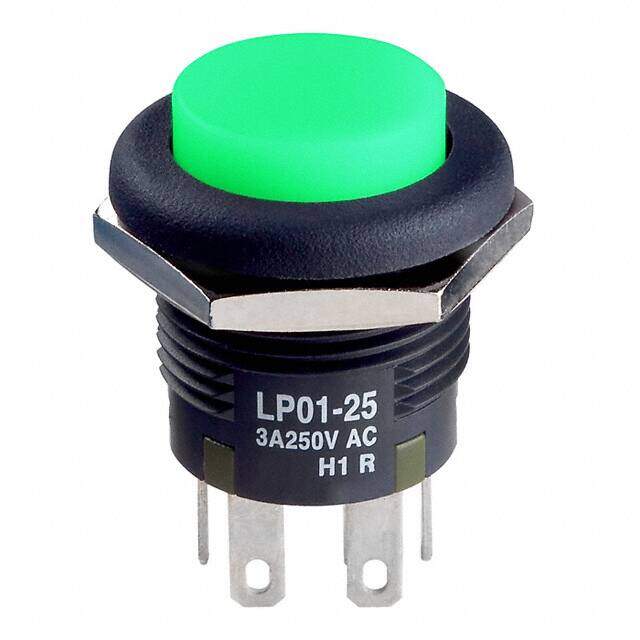

LP0125CCKW015FB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $13.23
Unit Price: USD $13.2264
≥1 USD $13.2264
≥10 USD $11.85712
≥100 USD $11.335808
≥500 USD $10.749552
≥1000 USD $10.358656
≥3000 USD $9.70721
Inventory: 52
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Silver
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material Polyamide
Actuator Material POLYCARBONATE
Technical
Operating Temperature -10°C~50°C
Packaging Bulk
Published 2012
Series LP01
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard, Illuminated
Voltage - Rated DC 30V
Current Rating (Amps) 3A AC/DC
Current Rating 3A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 200000000Ohm
Color - Actuator/Cap White
Illumination Voltage (Nominal) 2.1VDC
Illumination Type, Color LED, Green
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 50,000 Cycles
Mechanical Life 500,000 Cycles
Contact Current Rating 3A
Illumination Type Illuminated, LED
Illumination Color Green, White
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@125VAC
Contact Function ON-(ON)
Actuator Travel 2.9972 mm
Dimensions
Length - Termination 0.287 inch
Actuator Length 0.217 inch
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
