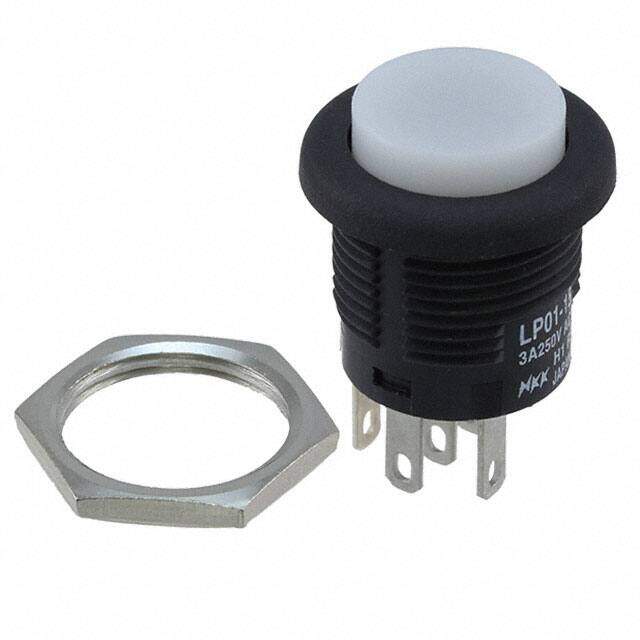

LP0115CCKW015CB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $11.83
Unit Price: USD $11.8272
≥1 USD $11.8272
≥10 USD $10.68672
≥100 USD $10.1728
≥500 USD $9.658352
≥1000 USD $9.315416
≥3000 USD $8.743926
Inventory: 265
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 20mm
Technical
Contact Function ON-(ON)
Contact (AC) Max Rating R Load 3A@125VAC
Contact Current(AC)-Max 3A
Illumination Color Red, White
Illumination Type Illuminated, LED
Contact Current Rating 3A
Mechanical Life 500,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Max Current Rating 3A
Max Voltage Rating (AC) 250V
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 1.95VDC
Color - Actuator/Cap White
Insulation Resistance 200000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 3A
Depth 20mm
Current Rating (Amps) 3A AC/DC
Voltage - Rated DC 30V
Type Standard, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series LP01
Published 2012
Packaging Bulk
Operating Temperature -10°C~50°C
Physical
Actuator Material Polycarbonate
Housing Material Polyamide
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Silver
Contact Material Bronze
Supply Chain
Factory Lead Time 5 Weeks
