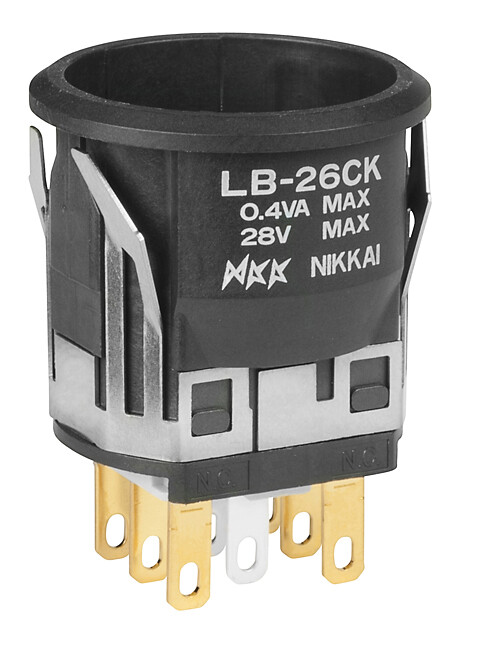

LB26CKG01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch Push Button ON ON DPDT Round Button 0.1A 28VAC 28VDC 0.4VA Alternate Contact Quick Connect/Solder Lug P
PDF
/
Buying Options
Total Price: USD $5.47
Unit Price: USD $5.474793
≥1 USD $5.474793
Inventory: 3810
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Body Height 21.4884mm
Length 23.7mm
Technical
Solderability HAND
Actuator Travel 2.9972 mm
Mechanical Life 200,000 Cycles
Max Voltage Rating (DC) 28V
Electrical Life 100,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Max Current Rating 100mA
Max Voltage Rating (AC) 28V
Sealing EPOXY
Insulation Resistance 200000000Ohm
Contact Resistance 0.1mOhm
Panel Cutout Dimensions Circular - 22.00mm Dia
Switch Function On-On
Circuit DPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 28V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Depth 23.7mm
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Additional Feature Non Illuminated without Cap
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series LB
Published 2009
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Terminal Material PHOSPHOR BRONZE
Housing Material Polyamide
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 13 Weeks
