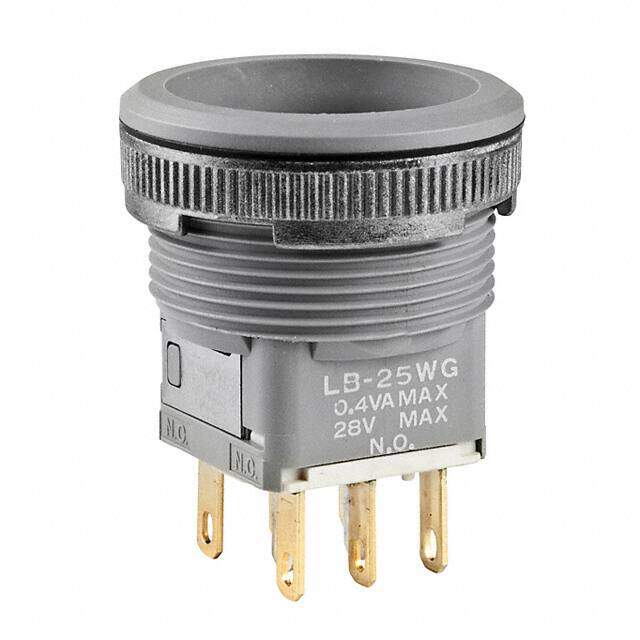

LB25WGG01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $16.34
Unit Price: USD $16.3416
≥1 USD $16.3416
≥10 USD $14.83944
≥100 USD $14.172928
≥500 USD $13.422464
≥1000 USD $12.922272
≥3000 USD $12.08856
Inventory: 140
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Plating Gold
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material Polyamide
Terminal Material PHOSPHOR BRONZE
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Published 2009
Series LB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 28V
Body Length or Diameter 15.7988mm
Body Breadth 15.7988 mm
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 22.00mm Dia
Contact Resistance 0.1mOhm
Insulation Resistance 200000000Ohm
Sealing EPOXY
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Contact Function ON-(ON)
Actuator Travel 2.9972 mm
Bushing Length 0.472 inch
Dimensions
Body Height 9.4996mm
Length - Termination 0.295 inch
Actuator Length 0.197 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Ratings Dust Tight, IP65, Water Resistant
