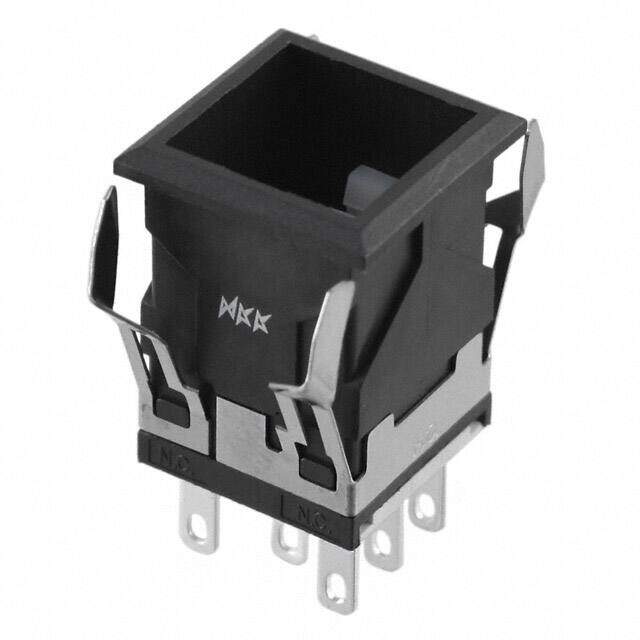

LB25SKW01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $11.92
Unit Price: USD $11.924
≥1 USD $11.924
≥10 USD $10.77032
≥100 USD $10.251648
≥500 USD $9.733504
≥1000 USD $9.38784
≥3000 USD $8.811933
Inventory: 122
Minimum: 1
-
+
Technical Details
Technical
Max Voltage Rating (DC) 30V
Mechanical Life 1,000,000 Cycles
Contact Current Rating 3A
Contact Current(AC)-Max 3A
Contact Timing BREAK-BEFORE-MAKE
Contact (DC) Max Rating R Load 3A@30VDC
Contact Function ON-(ON)
Solderability HAND
Electrical Life 100,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Max Current Rating 3A
Max Voltage Rating (AC) 250V
Sealing EPOXY
Contact Current(DC)-Max 3A
Insulation Resistance 200MOhm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Square - 16.20mm2
Switch Function On-Mom
Circuit DPDT
Actuator Type Plunger for Cap
Body Breadth 15.7988 mm
Body Length or Diameter 15.7988mm
Approval Agency CSA, UL
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 3A
Depth 17.8mm
Orientation Vertical
Current Rating (Amps) 3A AC/DC
Voltage - Rated DC 30V
HTS Code 8536.50.90.31
Additional Feature Non Illuminated without Cap
Color Black
Number of Positions 2
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series LB
Published 2011
Packaging Bulk
Operating Temperature -25°C~70°C
Dimensions
Actuator Length 0.197 inch
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
Physical
End Contact Plating GOLD
Terminal Material PHOSPHOR BRONZE
Housing Material Polyamide
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Material Silver
Supply Chain
Factory Lead Time 9 Weeks
