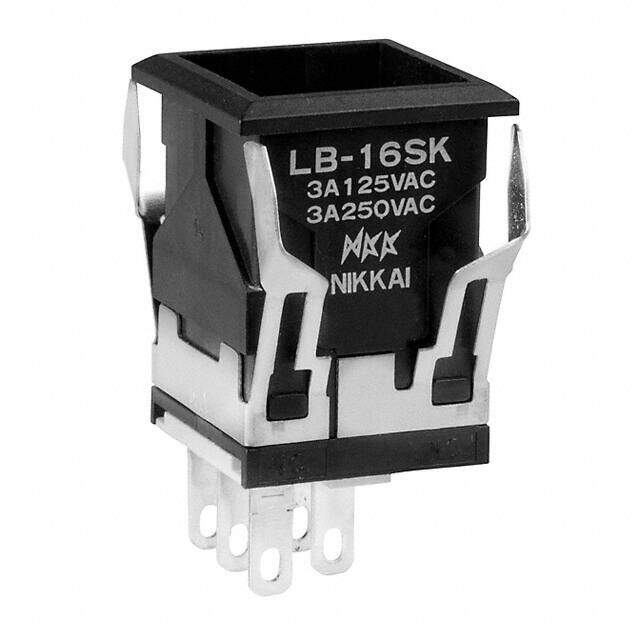

LB16SKW01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches SPDT On-On SQUARE
PDF
/
Buying Options
Total Price: USD $10.91
Unit Price: USD $10.912
≥1 USD $10.912
≥10 USD $9.856
≥100 USD $9.381504
≥500 USD $8.90736
≥1000 USD $8.591088
≥3000 USD $8.064003
Inventory: 84
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Contact Timing BREAK-BEFORE-MAKE
Contact Current(AC)-Max 3A
Contact Current Rating 3A
Mechanical Life 200,000 Cycles
Max Voltage Rating (DC) 30V
Number of Poles 1
Electrical Life 100,000 Cycles
Max Current Rating 3A
Max Voltage Rating (AC) 250V
Sealing EPOXY
Insulation Resistance 200MOhm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Square - 16.20mm2
Switch Function On-On
Circuit SPDT
Actuator Type Plunger for Cap
Approval Agency CSA, UL
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 3A
Depth 17.8mm
Orientation Vertical
Current Rating (Amps) 3A AC/DC
Voltage - Rated DC 30V
Number of Positions 2
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series LB
Published 2011
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Terminal Material PHOSPHOR BRONZE
Housing Material Polyamide
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Material Silver
Supply Chain
Factory Lead Time 13 Weeks
