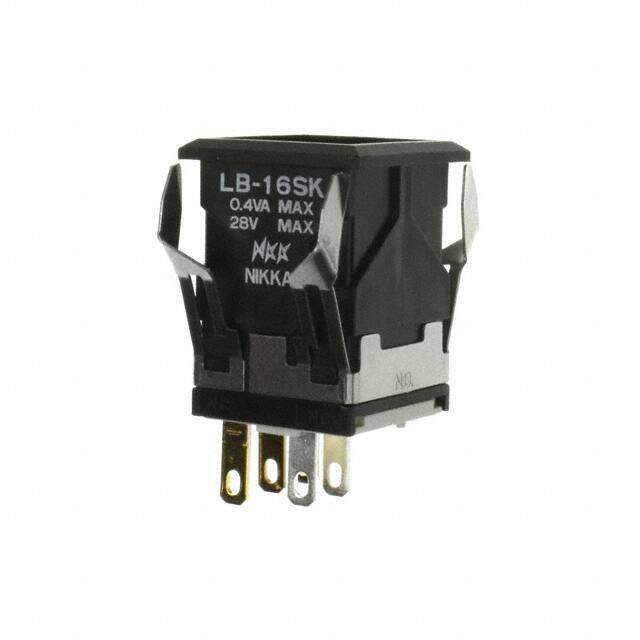

LB16SKG01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $11.48
Unit Price: USD $11.484
≥1 USD $11.484
≥10 USD $10.3708
≥100 USD $9.872192
≥500 USD $9.37288
≥1000 USD $9.040152
≥3000 USD $8.485558
Inventory: 77
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.197 inch
Length - Termination 0.295 inch
Body Height 21.4884mm
Technical
Solderability HAND
Actuator Travel 2.9972 mm
Mechanical Life 200,000 Cycles
Electrical Life 100,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Sealing EPOXY
Insulation Resistance 200000000Ohm
Contact Resistance 0.1mOhm
Panel Cutout Dimensions Square - 16.20mm2
Switch Function On-On
Circuit SPDT
Actuator Type Plunger for Cap
Body Breadth 15.7988 mm
Body Length or Diameter 15.7988mm
Voltage - Rated AC 28V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Additional Feature Non Illuminated without Cap
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series LB
Published 2009
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Terminal Material PHOSPHOR BRONZE
Housing Material Polyamide
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Gold
Supply Chain
Factory Lead Time 13 Weeks
