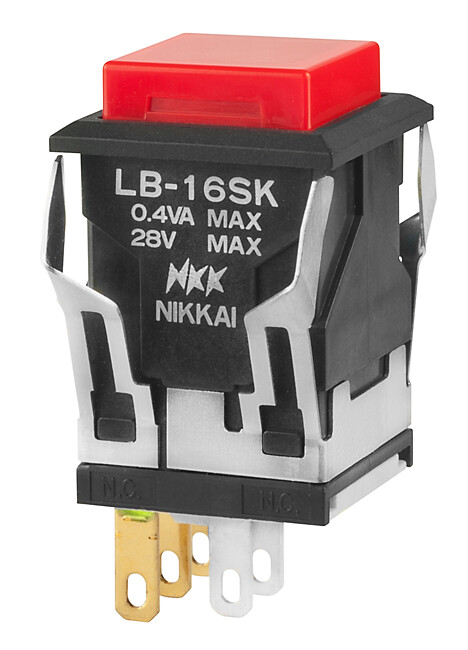

LB16SKG01-C

NKK Switches
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 0.4VA 28V
PDF
/
Inventory: 9292
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant

Dimensions

Actuator Length 0.197 inch
Length - Termination 0.295 inch
Body Height 21.4884mm

Technical

Actuator Travel 2.9972 mm
Mechanical Life 200,000 Cycles
Electrical Life 100,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Sealing EPOXY
Color - Actuator/Cap Red
Insulation Resistance 200000000Ohm
Contact Resistance 0.1mOhm
Panel Cutout Dimensions Square - 16.20mm2
Switch Function On-On
Circuit SPDT
Actuator Type Square, Button
Body Breadth 15.7988 mm
Body Length or Diameter 17.8054mm
Voltage - Rated AC 28V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Additional Feature Non Illuminated Cap
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series LB
Published 2011
Packaging Bulk
Operating Temperature -25°C~70°C

Physical

Terminal Material PHOSPHOR BRONZE
Housing Material Polyamide
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Gold

Supply Chain

Factory Lead Time 8 Weeks
