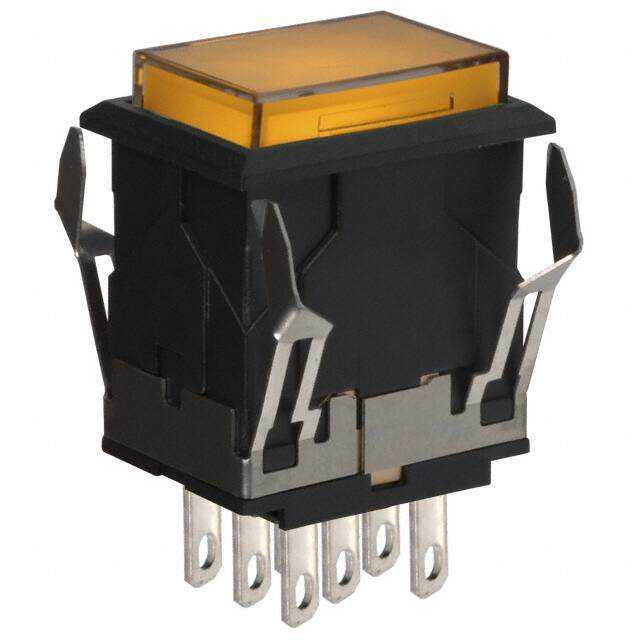

LB16RKW01-5D-JD
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $14.34
Unit Price: USD $14.344
≥1 USD $14.344
≥10 USD $12.86032
≥100 USD $12.294656
≥500 USD $11.658768
≥1000 USD $11.234872
≥3000 USD $10.528285
Inventory: 24
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Width 15.8mm
Technical
Illumination Color Orange
Illumination Type LED
Contact Current Rating 3A
Mechanical Life 200,000 Cycles
Electrical Life 100,000 Cycles
Illumination Type, Color LED, Amber
Illumination Voltage (Nominal) 2VDC
Color - Actuator/Cap Clear (Amber Filter/Diffuser)
Panel Cutout Dimensions Rectangular - 22.40mm x 16.20mm
Switch Function On-On
Circuit SPDT
Actuator Type Rectangular, Button
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 3A
Orientation Vertical
Current Rating (Amps) 3A AC/DC
Voltage - Rated DC 30V
Terminal Finish Silver (Ag)
Type Standard, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series LB
Published 2011
Packaging Bulk
Operating Temperature -25°C~50°C
Physical
Housing Material Polyamide
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Gold
Supply Chain
Factory Lead Time 13 Weeks
