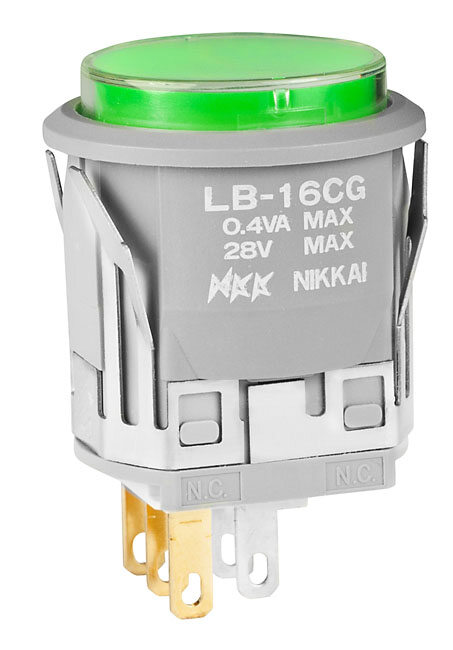

LB16CGG01-5F-JF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Inventory: 4533
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Technical
Life (Cycles) 200000 cycles
Illumination Color Green
Illumination Type LED
Mechanical Life 200,000 Cycles
Electrical Life 100,000 Cycles
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 2.1VDC
Color - Actuator/Cap Clear (Green Filter/Diffuser)
Panel Cutout Dimensions Circular - 22.00mm Dia
Switch Function On-On
Circuit SPDT
Actuator Type Round, Button
Voltage - Rated AC 28V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Orientation Vertical
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series LB
Published 2009
Packaging Bulk
Operating Temperature -25°C~50°C
Physical
Housing Material Polyamide
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Gold
Supply Chain
Factory Lead Time 8 Weeks
