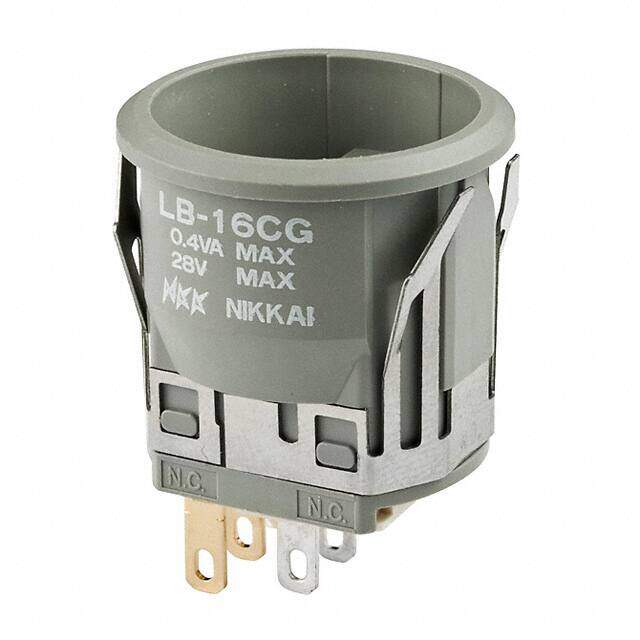

LB16CGG01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $12.14
Unit Price: USD $12.144
≥1 USD $12.144
≥10 USD $10.9692
≥100 USD $10.441728
≥500 USD $9.913728
≥1000 USD $9.561728
≥3000 USD $8.975085
Inventory: 49
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Plating Gold
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material Polyamide
Terminal Material PHOSPHOR BRONZE
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Published 2009
Series LB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Additional Feature Non Illuminated without Cap
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 28V
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 22.00mm Dia
Contact Resistance 0.1mOhm
Insulation Resistance 200000000Ohm
Sealing EPOXY
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 100,000 Cycles
Mechanical Life 200,000 Cycles
Actuator Travel 2.9972 mm
Solderability HAND
Dimensions
Body Height 21.4884mm
Length - Termination 0.295 inch
Actuator Length 0.197 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
