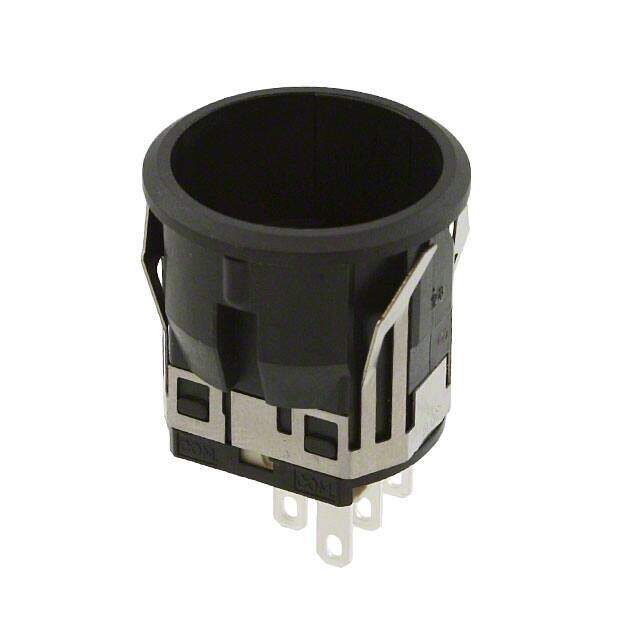

LB15CKW01 image
Favorite
LB15CKW01 image
Favorite

LB15CKW01

NKK Switches
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description Switch Push Button ON (ON) SPDT Round Button 3A 250VAC 30VDC Momentary Contact Quick Connect/Solder Lug Panel
PDF
/
Buying Options
Total Price: USD $10.95
Unit Price: USD $10.9472
≥1 USD $10.9472
≥10 USD $9.88944
≥100 USD $9.413184
≥500 USD $8.93728
≥1000 USD $8.62004
≥3000 USD $8.091178
Inventory: 86
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material Stainless Steel
Contact Plating Silver
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material Polyamide
Terminal Material PHOSPHOR BRONZE

Technical

Operating Temperature -25°C~70°C
Packaging Bulk
Published 2011
Series LB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Number of Positions 2
Color Black
Voltage - Rated DC 30V
Current Rating (Amps) 3A AC/DC
Orientation Vertical
Depth 23.7mm
Current Rating 3A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Approval Agency CSA, UL
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 22.00mm Dia
Contact Resistance 50mOhm
Insulation Resistance 200MOhm
Sealing EPOXY
Max Voltage Rating (AC) 250V
Max Current Rating 3A
Electrical Life 100,000 Cycles
Number of Poles 1
Max Voltage Rating (DC) 30V
Mechanical Life 1,000,000 Cycles
Contact Current Rating 3A
Contact Current(AC)-Max 3A
Contact Function ON-(ON)

Dimensions

Length 23.7mm
Width 22mm
Thickness 22mm

Compliance

REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
