LB15CKG01-E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

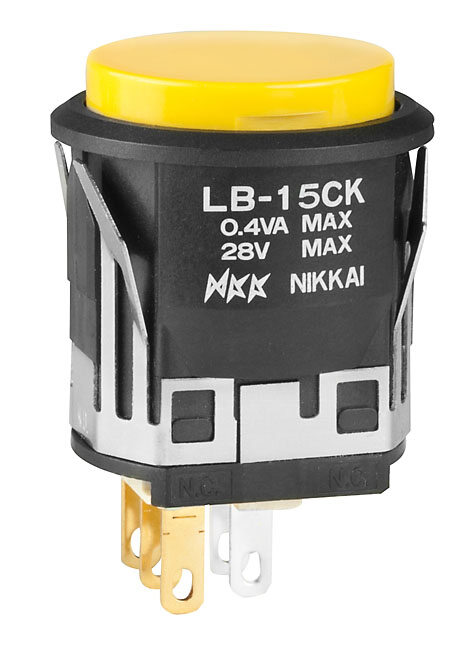

Pushbutton Switches ON-(ON) ROUND YELLOW CAP
PDF
/
Inventory: 5619
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Plating Gold
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material Polyamide
Terminal Material PHOSPHOR BRONZE
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Published 2009
Series LB
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Additional Feature Non Illuminated Cap
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Orientation Vertical
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 28V
Body Length or Diameter 23.6982mm
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 22.00mm Dia
Contact Resistance 0.1mOhm
Insulation Resistance 200000000Ohm
Color - Actuator/Cap Yellow
Sealing EPOXY
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Contact Function ON-(ON)
Actuator Travel 2.9972 mm
Dimensions
Body Height 21.4884mm
Length - Termination 0.295 inch
Actuator Length 0.197 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Alternative Model
