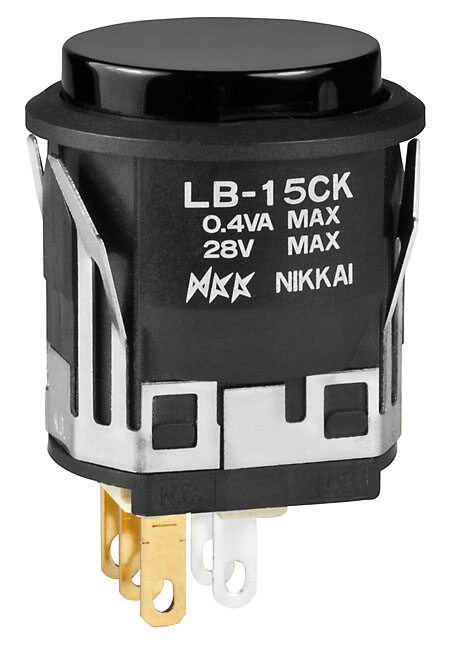

LB15CKG01-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches ON-(ON) ROUND BLACK CAP
PDF
/
Buying Options
Total Price: USD $11.96
Unit Price: USD $11.9592
≥1 USD $11.9592
≥10 USD $10.80376
≥100 USD $10.283328
≥500 USD $9.763424
≥1000 USD $9.41688
≥3000 USD $8.839107
Inventory: 104
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.197 inch
Length - Termination 0.295 inch
Body Height 21.4884mm
Technical
Actuator Travel 2.9972 mm
Contact Function ON-(ON)
Illumination Type Illuminated
Mechanical Life 1,000,000 Cycles
Electrical Life 100,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Sealing EPOXY
Color - Actuator/Cap Black
Insulation Resistance 200000000Ohm
Contact Resistance 0.1mOhm
Panel Cutout Dimensions Circular - 22.00mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Body Length or Diameter 23.6982mm
Voltage - Rated AC 28V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Orientation Vertical
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series LB
Published 2009
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Terminal Material PHOSPHOR BRONZE
Housing Material Polyamide
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Gold
Supply Chain
Factory Lead Time 5 Weeks
