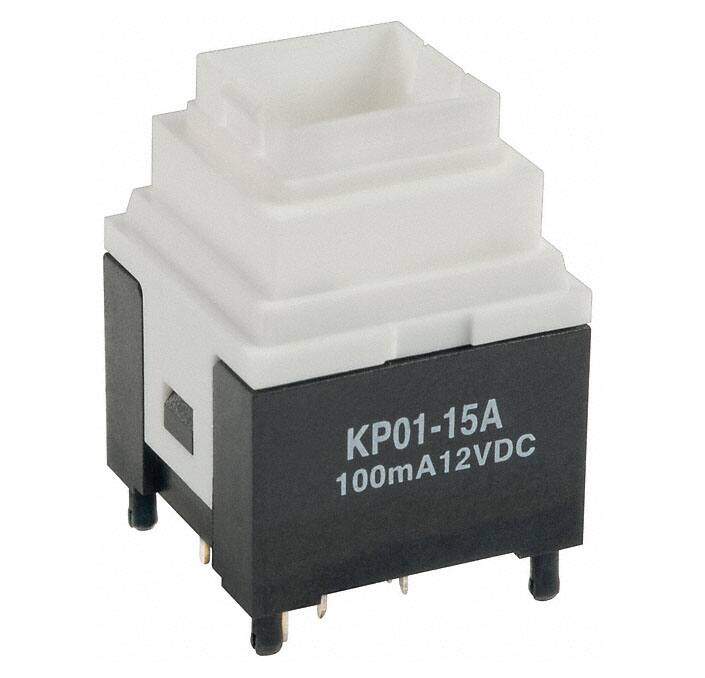

KP0115ANAKG036CF
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.1A 12V
PDF
/
Buying Options
Total Price: USD $9.89
Unit Price: USD $9.8912
≥1 USD $9.8912
≥10 USD $8.91264
Inventory: 24
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Length - Termination 0.142 inch
Body Height 11.5062mm
Technical
Actuator Travel 4.4958 mm
Contact Function OFF-(ON)
PCB Hole Count 9
Contact (DC) Max Rating R Load 0.1A@12VDC
Illumination Color Green, Red
Illumination Type LED
Mechanical Life 5,000,000 Cycles
Throw Configuration SPST
Electrical Life 5,000,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Illumination Type, Color LED, Red/Green
Illumination Voltage (Nominal) 2.0 3.1VDC
Contact Current(DC)-Max 0.1A
Insulation Resistance 100000000Ohm
Contact Resistance 0.2mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Plunger for Cap
Termination Style PC Pin
Current Rating 100mA
Current Rating (Amps) 100mA DC
Voltage - Rated DC 12V
Type Standard, Illuminated
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series KP
Published 2012
Packaging Bulk
Operating Temperature -25°C~50°C
Physical
End Contact Material COPPER ALLOY
Terminal Material BRASS
Center Contact Material STAINLESS STEEL
Housing Material Glass fibre
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 18 Weeks
